Product Descriptions

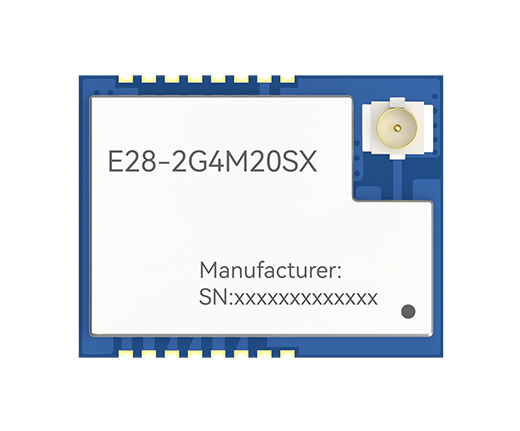

E28-2G4M20XX is a 2.4GHz RF transceiver module designed and produced by Yibaite Company, with a transmission power of 100mW and a long communication distance; Has extremely low power consumption mode current consumption. This module is a small volume patch type (with a pin spacing of 1.27mm), which comes with a high-performance PCB onboard antenna and uses a 52MHz industrial grade high-precision low-temperature drift active crystal oscillator; Ensure its industrial characteristics and stability performance.

We use Semtech's SX1281 RF chip, which includes various physical layers and modulation methods such as LORA, FLRC, GFSK, and is compatible with Bluetooth protocol. The special modulation and processing methods greatly increase the transmission distance of LoRa and FLRC modulation. On the basis of the original, power amplifiers (PA) and low-noise amplifiers (LNA) are built in, which not only achieves a maximum transmission power of 100mW but also further improves the reception sensitivity. The overall communication stability is significantly improved compared to products without power amplifiers and low-noise amplifiers. The excellent low-power performance, on-chip DC-DC, and Time of Flight make this chip powerful and suitable for smart homes, security systems, location tracking, wearable devices, smart bracelets, and health management, among others. Supports RSSI and can be further developed as needed.

As this module is a pure RF transceiver module, it requires the use of MCU drivers or specialized SPI debugging tools.

Product Features

• Under ideal conditions, the communication distance can reach 6km;

• Built in PA+LNA, maximum transmission power of 100mW;

• Compatible with BLE protocol;

• Support license free ISM 2.4GHz frequency band;

• Supports data transmission rates ranging from 0.476k to 2Mbps;

• Supports multiple modulation modes (GFSK Mode, FLRC Mode, LoRa Mode);

• Supports 1.8-3.6V power supply, with optimal performance guaranteed for power supplies above 3.3V;

• Industrial standard design, supporting long-term use at -40~85 ℃;

• Dual antenna options (IPX/PCB) are available for users' secondary development and integration;

• Adjustable speed, up to 1.3Mbps under FLRC modulation mode;

• Excellent anti blocking properties;

Product Applications

• Smart home and industrial sensors, etc;

• Security system, positioning system;

• Wireless remote control, unmanned aerial vehicle;

• Wireless gaming remote control;

• Healthcare products;

• Wireless voice, wireless headphones;

• Application in the automotive industry.
