Product Descriptions

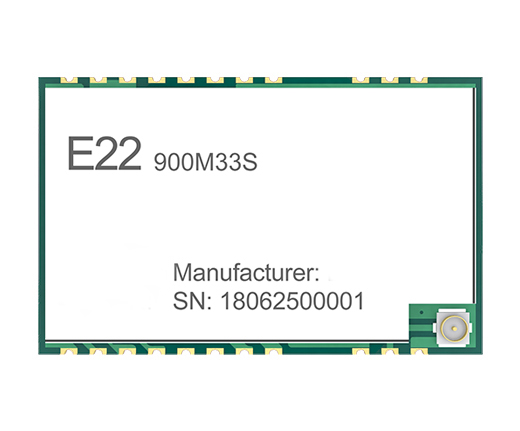

E22-900M33S is based on the new generation LoRaTM RF chip SX1262 produced by Semtech in the United States. It is independently developed with a maximum power of 2W and is suitable for 868/915MHz surface mount LoRaTM wireless modules. It uses an industrial grade high-precision 32MHz crystal oscillator.

Due to the use of the original imported SX1262 as the module core, a power amplifier (PA) and a low-noise amplifier (LNA) are built in on the original basis, which not only achieves a maximum transmission power of 2W but also further improves the receiving sensitivity. The overall communication stability is significantly improved compared to products without power amplifiers and low-noise amplifiers. Compared with the previous generation LoRaTM transceiver, the anti-interference performance and communication distance have been improved, further widening the gap with products using FSK and GFSK modulation methods. This product can cover a wide applicable frequency range of 850-930MHz and is backward compatible with SX1278 and SX1276.

As this module is a pure RF transceiver module, it requires the use of MCU drivers or specialized SPI debugging tools.

Product Features

• Compared with the SX1278 module, the SX1262 module has significant advantages in lower power consumption, faster speed, and longer distance;

• Under ideal conditions, the communication distance can reach 16km;

• Built in PA+LNA, greatly improving communication distance and stability;

• Maximum transmission power of 2W, software multi-level adjustable;

• Support global license free ISM 868/915MHz frequency band;

• Supports multiple modulation modes, LoRaTM/GFSK；

• Supports data transmission rates ranging from 0.3k to 62.5kbps in LoRaTM mode;

• Supports a maximum data transmission rate of 300kpbs in GFSK mode;

• Backward compatibility with SX1278/SX1276 series RF transceivers;

• FIFO has a large capacity and supports 256Byte data caching;

• The new SF5 spreading factor launched to support dense networks;

• Supports 3.3-5.5V power supply, with optimal performance guaranteed for power supplies greater than 5V;

• Industrial standard design, supporting long-term use at -40~+85 ℃;

• Dual antenna options (IPE/stamp hole) are available for users' secondary development and integration;

Product Applications

• Home security alarm and remote keyless entry;

• Smart home and industrial sensors, etc;

• Wireless alarm security system;

• Building automation solutions;

• Wireless industrial grade remote control;

• Advanced Meter Reading Architecture (AMI);

Specifications
