Product Descriptions

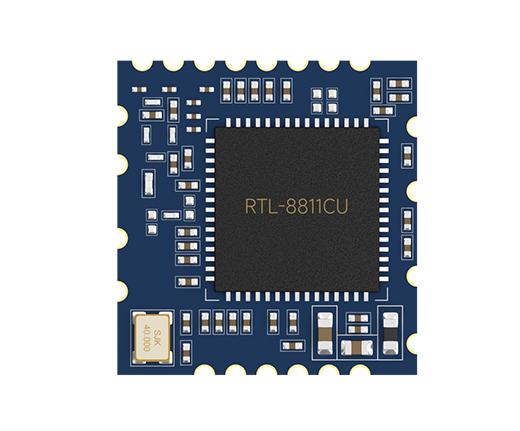

E103-RTL8811CU is a low-cost, high-performance dual band WiFi module developed based on the RTL8811CU-CG chip solution. Compliant with the IEEE 802.11b/g/n/ac standard, with a maximum speed of 433Mbps, it has rich interfaces and powerful processors, providing a complete solution for integrated wireless WLAN devices with high throughput performance.

Product Features

⚫  The working frequency ranges from 2.4GHz to 2.484GHz and from 5.15GHz to 5.85GHz;

⚫  The maximum wireless speed can reach 433M;

⚫  Compliant with IEEE 802.11b/g/n/ac protocol standards;

⚫  Supports channel bandwidth of 5/10/20/40/80MHz;

⚫  Support WPA and WPA2 information encryption;

⚫  Supports 802.11ac 1x1, Wave-2 compatible with MU-MIMO STA mode;

⚫  The communication interface is USB 2.0;

⚫  Equipped with excellent MIMO technology and dual band for use;

⚫  Working temperature: -20 to+70 ℃;

⚫  Widely used in the Internet of Things;

Product Applications

⚫  WiFi video transmission;

⚫  WiFi audio transmission;

⚫  Router;

⚫  WiFi repeater;

⚫  Smart home universal modules such as serial port forwarding;

⚫  Cloud service application

⚫  IoT gateway;

Specifications
