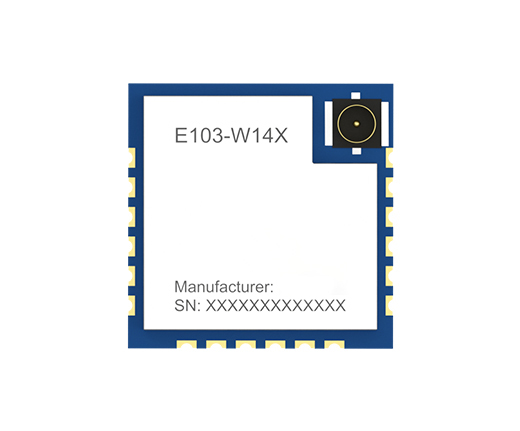

Product Descriptions

The E103-W14 series products are low-power, cost-effective Wi Fi&Bluetooth modules that comply with Bluetooth 5.2 and IEEE 802.11b/g/n standard protocol specifications. The module integrates the hardware and software resources required for complete Wi Fi and Bluetooth applications, supporting three Wi Fi working modes: AP, STA, AP+STA, and low-power Bluetooth. It is very suitable for low-speed applications and data collection applications such as smart homes and industrial control.

In terms of functionality, the module supports IEEE802.11 b/g/n standards and Bluetooth BLE5.2 protocol. The module can work in both STA and BLE slave modes simultaneously, and supports multiple network transmission protocols such as TCP/UDP/HTTP/MQTT.

Product Features

• Supports IEEE802.11/b/g/n standards and operates in the 2.4GHz frequency band;

• Supports Bluetooth BLE5.2 protocol and operates in the 2.4GHz frequency band;

• Supports three working modes: AP, STA, and AP+STA;

• Support simultaneous operation of module STA and BLE slaves;

• Support WPA2 WIFI security authentication method;

• Supports multiple network communication protocols such as TCP/UDP/HTTP/MQTT;

• Supports up to 6 socket connections;

• AP access points support 3 STA device connections;

• Support SNTP network time acquisition (provided internet access is available);

• Support MQTT and MQTT network protocols (Alibaba Cloud, Baidu Cloud, OneNet)

• Support HTTP client;

• Supports TCP SERVER/TCP CLIENT and UDP communication methods;

• Support AT command configuration;

• Support static IP address allocation and DHCP dynamic allocation;

• Support scanning nearby AP information;

• Supports fast WiFi connection;

• Support automatic adjustment of Bluetooth packet length;

• Supports WiFi and Bluetooth slave mode switching;

• Maximum MTU is 244 bytes;

Product Applications

• -Medical and healthcare

• ·Multi parameter patient monitor

• ·Electrocardiogram (ECG) · Hospital electronic bed and bed control system

• ·Remote medical system

• -Building and Home Automation: HVAC Systems and Thermostats

• ·Video surveillance, video doorbell, and low-power camera

• ·Building safety systems and low-power electronic locks

• -Intelligent appliances

• -Smart wearables

• -Asset tracking

• -Factory automation

• -Power grid infrastructure

Specifications
