Product Descriptions

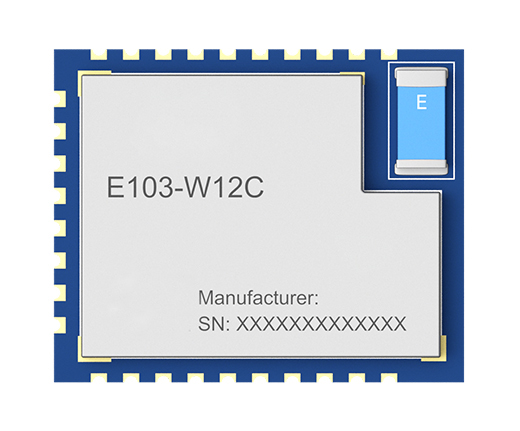

The E103-W12 series is a low-power WiFi module based on the Dialog DA16200 SoC chip, which supports IEEE 802.11b/g/n. It is equipped with a high-performance ARM Cortex-M4 processor and operates in the 2.4-2.4835GHz frequency band, with a maximum wireless transmission power of 20dBm.

Functionally, the module supports the IEEE802.11 b/g/n standard, supports AP and STA modes, supports TCP/UDP/HTTP/MQTT multiple network transmission protocols, and can maintain WIFI connection in low-power mode.

Product Features

• Supports IEEE802.11/b/g/n standards and operates in the 2.4GHz frequency band;

• It has three low and low power consumption modes to choose from, with a minimum current of up to 0.2uA;

• Supports three working modes: AP, STA, and AP+STA;

• Support multiple WIFI security authentication methods such as WEP/WPA/WPA2/WPA3;

• Supports multiple network communication protocols such as TCP/UDP/HTTP/MQTT;

• Supports up to 7 socket connections;

• AP access points support 6 STA device connections;

• Support SNTP network time acquisition (provided internet access is available);

• Support MQTT and MQTTS network protocols (Alibaba Cloud, Baidu Cloud, OneNet, Amazon Web Services)

• Support HTTP client;

• Supports TCP SERVER/TCP CLIENT and UDP communication methods;

• Support AT command configuration;

• Support static IP address allocation and DHCP dynamic allocation;

• Support scanning nearby AP information;

• Supports fast WiFi connection;

• Support low-power mode to maintain WIFI connection;

• Supports PWM output, ADC acquisition, GPIO control;

Product Applications

-Medical and healthcare

·Multi parameter patient monitor

·Electrocardiogram (ECG) · Hospital electronic bed and bed control system

·Remote medical system

-Building and Home Automation:

·HVAC system and thermostat

·Video surveillance, video doorbell, and low-power camera

·Building safety systems and low-power electronic locks

-Intelligent appliances

-Smart wearables

-Asset tracking

-Factory automation

-Power grid infrastructure

Specifications
