Product Descriptions

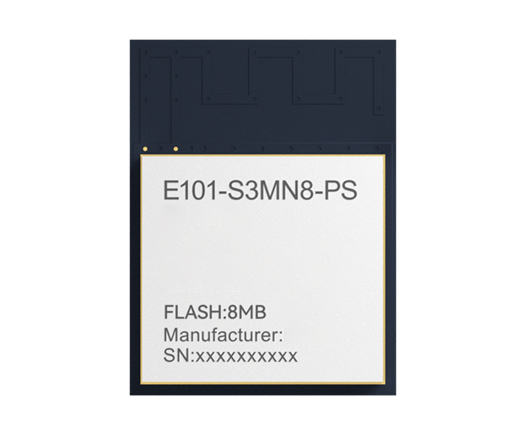

E101-S3MN8-PS and E101-S3MN8-XS are two universal Wi Fi+low-power Bluetooth modules equipped with ESP32-S3 chips. In addition to having rich peripheral interfaces, the module also has powerful neural network computing and signal processing capabilities, suitable for various application scenarios in the AIoT field, such as wake-up word detection and voice command recognition, face detection and recognition, smart homes, smart appliances, smart control panels, smart speakers, etc.

E101-S3MN8-PS uses PCB board mounted antenna, while E101-S3MN8-XS uses IPEX antenna. Wi Fi and Bluetooth coexist and share the same antenna.

Product Features

• Built in ESP32-S3 series chip, equipped with Xtensa ®  Dual core 32-bit LX7 microprocessor (supporting single precision floating-point arithmetic units);

• Supports clock frequencies up to 240 MHz;

• Having 8 MB of flash;

• Supports 2.4 GHz Wi Fi (802.11 b/g/n)+Bluetooth ®  5 (LE) ；

• Has rich peripheral interfaces, such as GPIO, SPI, LCD, Camera interface, UART, I2C, I2S, etc;

• The working temperature can be between -40~85 ° C;

Specifications

Actual product photos

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
