Product Descriptions

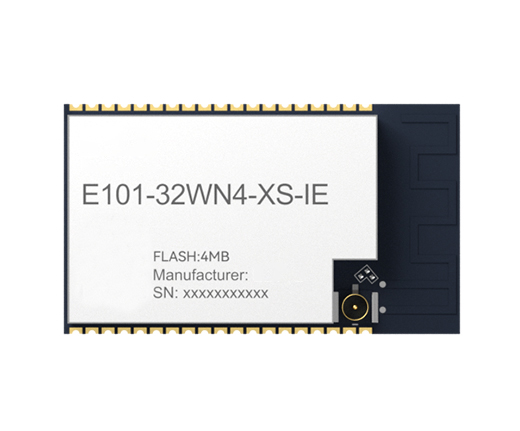

E101-32WN4-XS-IE WIFI module based on ESP32-D0WD-V3 chip solution.

E101-32WN4-XS-IE is a universal Wi Fi module with powerful functions and built-in ESP32-D0WD-V3 chip, Xtensa ®  Dual core 32-bit LX6 microprocessor, 448 KB ROM, 520 KB SRAM, 16 KB RTC SRAM supporting clock frequencies up to 240 MHz Rate.

Wi Fi supports a wide range of communication connections, and also supports direct connection to the Internet through a router; The sleep current of ESP32 chip is less than 5 µ A, making it suitable for battery powered wearable electronic devices. The module supports a data transmission rate of up to 150 Mbps and an antenna output power of 20 dBm, enabling wireless communication within the maximum range. Therefore, this module has industry-leading technical specifications and excellent performance in high integration, wireless transmission distance, power consumption, and network connectivity.

It can be used for low-power sensor networks and demanding tasks such as speech encoding, audio streaming, and MP3 decoding.

Product Features

⚫  4 MB SPI flash，

⚫  Support AT commands;

⚫  Support serial communication and flow control. The maximum supported baud rate is 128000;

⚫  Support automatic and manual networking;

Specifications
