Product Descriptions

E103-W08 is a 2.4G WIFI to serial port module, with a maximum WIFI transmission power of up to 12dBm. This module is equipped with ARM built-in ® Cortex ®- M3 Application Processor and ARM ®  Cortex ®- M0 Link Controller， The implementation of separate management for the application layer and connection layer ensures stable and reliable performance.

E103-W08 supports 802.11b protocol in terms of functionality; Supporting WPA and WPA2 encryption methods can meet various wireless communication scenarios and application protocols, and can meet the industrial requirements for TCP, HTTP, and MQTT. It also has industry wide automatic connection and transparent boot transmission. In addition to AT command parameter configuration, it also supports BLE for fast and convenient distribution network. In terms of power consumption, it can be adjusted in multiple levels, and users can set the corresponding power consumption level according to their own needs. The lowest power consumption can reach 120uA while maintaining a communicative WiFi connection. E103-W08 is an industrial grade WIFI module that integrates simplicity, ease of use, high reliability, and high performance.

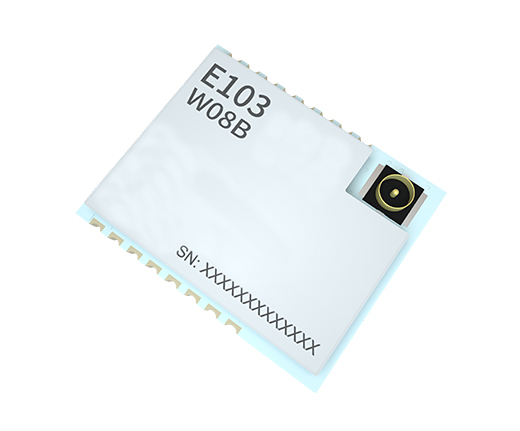

E103-W08 is divided into two hardware versions, with E103-W08A having only the PCB antenna and E103-W08B having only the IPX antenna interface. The firmware of both products is the same, except for the difference in hardware antenna.

Product Features

• Support IEEE802.11b standard

• Supports WIFI stations  Supports WPA and WPA2 encryption methods

• Supports regular network communication such as TCP, HTTP client, MQTT, etc

• Support AT command parameter configuration

• Support BLE fast distribution network

• Support reconnection after network disconnection

• Supports multiple connections, with a maximum of 4 socket connections supported

• Support BLE fast network connection to AP

• Support WIFI scanning

• Support manual connection and disconnection of AP

• Support AT command configuration parameters

• Support multi-level adjustable power consumption

Product Applications

-Medical and healthcare

·Multi parameter patient monitor

·Electrocardiogram (ECG)

·Hospital electronic bed and bed control system

·Remote medical system

-Building and Home Automation:

·HVAC system and thermostat

·Building safety systems and electronic locks

-Intelligent appliances

-Asset tracking

-Factory automation

-Power grid infrastructure

-Low power intelligent sensor device

Specifications

Actual product photos
