Product Descriptions

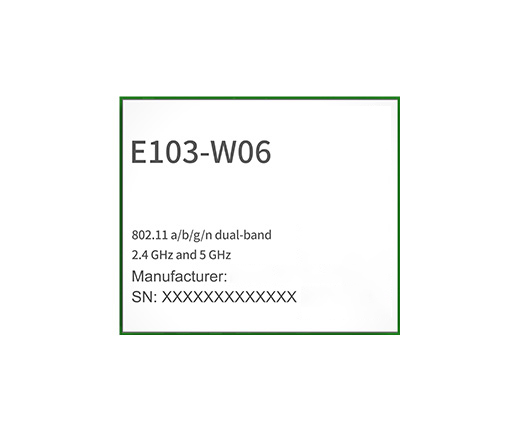

E103-W06 is a high-performance and highly reliable dual band WIFI module based on TI's third-generation WIFI chip CC3235S. It is equipped with a high-performance ARM Cortex-M4 processor and has a maximum wireless transmission power of+18dBm. The hardware package is compatible with the original CC3235MODS and CC3235MODSF, and our company's modules are interchangeable with them.

Functionally, the module supports IEEE802.11 a/b/g/n standards and can operate in both 2.4G and 5G frequency bands. The module supports AP, STA, WIFI Direct (only 2.4G frequency band supported) modes, TCP/UDP/HTTP/MQTT multiple network transmission protocols, embedded mDNS, DNS-SD, DHCP service packets, and supports individual WPA2 encryption, which can meet various high standard and high reliability wireless communication scenarios. It also has power on transparent transmission and Smartconfig convenient distribution network functions. E103-W06 is an industrial grade WIFI module that truly integrates simplicity, ease of use, high reliability, and high performance.

Product Features

• Supports IEEE802.11 a/b/g/n standards

• Dual band WIFI: can work in two frequency bands: 2.4GHz and 5GHz

• Supports three working modes: AP, STA, and WIFI Direct;

• Support multiple WIFI security authentication methods such as WEP/WPA/WPA2;

• Supports multiple network communication protocols such as TCP/UDP/HTTP/MQTT;

• Support TSL/SSL secure transmission method;

• Supports up to 4 socket connections;

• AP access points support 4-channel STA device connections;

• Support mDNS, DNS-SD, DHCP network service packets;

• Support web page parameter configuration;

• Support NTP network time retrieval (provided internet access is available);

• Support automatic reconnection after disconnection;

• Supports high-speed continuous transmission, with a maximum serial port baud rate of 3M for continuous transmission;

• Support switching between multiple power consumption modes;

• Support WIFI idle connection (LDPS);

• Support MQTT network protocol (Alibaba Cloud, Baidu Cloud, OneNet)

• Support WebSocket connections;

• Supports HTTP client

• Supports TCP SERVER/TCP CLIENT and UDP communication methods;

Product Applications

-Medical and healthcare

·Multi parameter patient monitor

·Electrocardiogram (ECG)

·Hospital electronic bed and bed control system

·Remote medical system

-Building and Home Automation:

·HVAC system and thermostat

·Video surveillance, video doorbell, and low-power camera

·Building safety systems and electronic locks

-Intelligent appliances

-Smart wearables

-Asset tracking

-Factory automation

-Power grid infrastructure

Specifications
