Product Descriptions

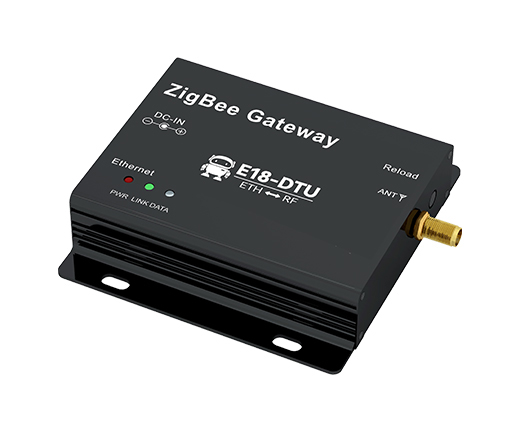

E18-DTU (Z27-ETH) is a high-power ZigBee gateway that comes with a complete set of supporting ZigBee node devices. It supports adaptive network speeds (up to 10M full duplex) and offers six working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTP Client, and MQTT Client. Users can configure it through a web page. There are three types of logical devices in ZigBee networks: coordinators, routers, and terminal devices. A ZigBee network consists of a coordinator and multiple routers or terminals.

Product Features

• RJ45 supports 10M Ethernet interface;

• Supports multiple working modes (TCP Server, TCP Client, UDP Server, UDP Client, HTTPC, MQTT);

• Supports three configuration methods: configuration tools, web pages, and AT commands;

• Server mode supports multiple socket connections;

• Supports multiple baud rates;

• Support DHCP function, after enabling DHCP, the IP address of the device will be allocated by the router, which may cause the inability to determine the IP address and access. It is generally recommended to use a static IP address;

• Support DNS (Domain Name Resolution), customizable domain name resolution servers;

• Supports multiple Modbus gateways (simple protocol conversion, multi host mode, storage gateway, configurable gateway);

• Support quick access to Alibaba Cloud, Baidu Cloud OneNET、 Huawei Cloud, 3.1 version standard MQTT server;

• Supports HTTP protocol (GET/POST requests);

• Support virtual serial ports;

• Support timeout restart function, customizable restart time;

• Support short connection function, customizable short connection interval;

• Support heartbeat package and registration package functions;

• Support serial port cache cleaning function;

• Support access to external and local networks;

• Support hardware factory reset;

• Support online upgrade function.
