Product Descriptions

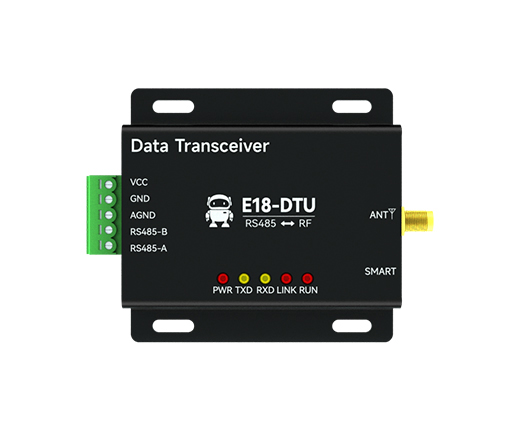

E18-DTU (Z20-485) and E18-DTU (Z27-485) are wireless radios based on ZigBee 3.0 technology, with multiple functions such as transparent transmission and protocol transmission. Wireless data transmission radio, as a communication medium, has a certain scope of application, just like fiber optic cables, microwaves, and open lines. It provides real-time and reliable data transmission of monitoring signals in private networks under certain special conditions. It has the characteristics of low cost, easy installation and maintenance, strong diffraction ability, flexible network structure, and long coverage range. It is suitable for situations with many scattered points and complex geographical environments, and can be connected to data terminals such as PLC, RTU, rain gauge, liquid level gauge, etc.
Product Features
★ All core components are imported with original packaging. Compared with similar imported data transmission radios, it has the most advanced functions, the smallest size, and the best price.
★ Multiple options for transmission power.
★ Working temperature range: -40 ℃~+85 ℃, suitable for various harsh working environments, truly industrial grade products.
★ All aluminum alloy shell, compact size, easy installation, good heat dissipation; Perfect shielding design, good electromagnetic compatibility, and strong anti-interference ability.
★ Multiple protection functions such as power reverse protection, overvoltage protection, and antenna surge protection greatly increase the reliability of the radio station.
★ Powerful software features, all parameters can be set through programming, such as power, frequency, address ID, etc.
★ Built in watchdog and precise time layout. Once an exception occurs, the module will automatically restart and continue to work according to the previous parameter settings.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E18-DTU(Z20-485) | |
| 射频芯片 RF CHIP | CC2530 | TI 原装进口 TI original imported |
| 产品尺寸 Product size | 68*66*21mm | 不含天线 Without antenna |
| FLASH | 256KB | |
| RAM | 8KB | |
| 支持协议 Support agreement | ZigBee3.0 | |
| 通信接口 Communication interface | RS485 | 3.81mm接线端子 3.81mm wiring terminal |
| 天线接口 Antenna interface | SMA-K | 外螺纹内孔 External thread internal hole |
| 工作电压 Working voltage | +8 ~ +28V DC | 建议采用12V或24V供电 Suggest using 12V or 24V power supply |
| 发射电流 Emission Current | 78 @20dBm | |
| 工作温度 Operation temperature | -40 ~ +85℃ | 工业级 Industrial grade |
| 存储温度 Storage temperature | -40 ~ +125℃ | |
| 工作频段 Working frequency band | 2.405 ~ 2.480GHz | 支持ISM 频段 Support ISM frequency band |
| 发射功率 Transmission power | 20dBm | |
| 阻塞功率 Blocking power | 0 ~ 10.0dBm | 近距离使用烧毁概率较小 The probability of burning is relatively low when used at close range |
| 接收灵敏度 Receiver sensitivity | -98.0 ± 1.0dBm | 空中速率为 250kbps The air speed is 250kbps |
| 串口波特率 Serial Port Baud Rate | 9600、19200、38400、57600、115200 | 默认115200bps Default 115200bps |
| 匹配阻抗 Matching impedance | 50Ω | 等效阻抗 Equivalent Impedance |
| 最小发送包长 Minimum packet length for sending | 1byte | |
| 实测距离 Measured distance | Km | 晴朗空旷，天线增益5dBi，高度2.5米，空中速率250kBps。 Clear and spacious, with an antenna gain of 5dBi, a height of 2.5 meters, and an air speed of 250kBps. |
