Product Descriptions

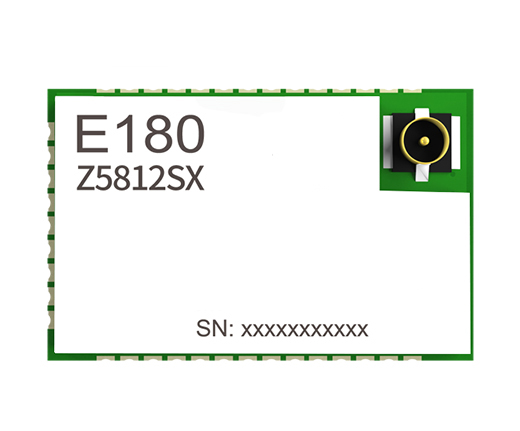

The E180-Z5812 series is a small-sized, low-power, high reliability ZIGBEE module designed and produced based on the TELINK TLSR8258 wireless SOC, operating in the 2.4GHz frequency band. The chip comes with a 32-bit high-performance MCU up to 48MHz, with a maximum transmission power of 12dBm and a minimum cycle sleep current of 2uA.

TLSR8258 has great potential to become the preferred wireless microcontroller for future smart furniture, IoT transformation, and industrial automation. Its network characteristics comply with the ZIGBEE3.0 standard and provide a complete application integration solution based on the IEEE 802.15.4 ISM frequency band. The product has been tested and certified by a series of authoritative RF instruments, combined with years of market experience and the actual needs of users in the industry. It integrates the extremely complex communication protocol of wireless products into the built-in SoC, supports transparent serial transmission mode, and integrates fast and easy-to-use self-organizing network functions. It provides multiple configurable ADC, IO, PWM interfaces, simplifying the complex development process of wireless products and enabling your product to be quickly launched into the market at a lower cost.

Product Features

• Centralized network management: ZIGBEE 3.0 security standard centralized network access mechanism, data security and reliability;

• Supports ZCL standard protocol and configurable ZCL protocol specifications, capable of simulating the access and control of tens of thousands of intelligent devices in hundreds of categories under Zigbee protocol. Can be connected

• Multiple smart home gateways and platforms can be accessed without the need for customized firmware.

• Supports access and control of multiple smart home terminal products (limited to the coordinator version), supporting access and control of tens of thousands of smart devices across hundreds of categories under the Zigbee protocol, without the need for customized firmware.

• Large capacity: 512K capacity flash, 64K capacity RAM, network nodes can be expanded to over 100;

• Role switching: Users can switch the device between two types of terminals and sleep terminals through serial port commands (limited to terminal node version);

• Supports multiple network topologies: point-to-point, star network, MESH network;

• Network self-healing: When intermediate nodes in the network are lost, other networks automatically join or maintain the original network;

• Address search: Users can search for the corresponding short address based on the MAC address of the network node they have joined, and can also search for the corresponding long address of each node in the network based on the short address of the node.

• Network management: The coordinator version can manage the MAC addresses of all network nodes (routing nodes and terminal nodes), and freely add and delete nodes.

• Data Security: Integrated with ZIGBEE 3.0 secure communication standard, the network contains multiple levels of security keys;

• Serial port configuration: The module has built-in serial port commands, and users can configure (view) the parameters and functions of the module by issuing serial port commands.

• Network PAN-ID Change: Users can customize the PAN-ID to join the corresponding network or automatically select the PAN-ID to join the network by switching between network PANIDs;

• PWM control: Local/remote PWM control, 4 PWM channels for users to choose from;

• ADC control: Local/remote ADC reading, 2 ADC channels for users to choose from;

• One click recovery of baud rate: If the user forgets or does not know the baud rate, this function can be used to restore the default baud rate to 115200.

• Serial port wake-up: Supports serial port wake-up function. When the module is in sleep mode and receives a frame of data less than or equal to 10 bytes, it will be woken up. This data is the wake-up frame used to wake up the module and will not be treated as data.

• Module reset: Users can reset the module through serial commands.

• Restore factory settings: Users can use serial commands to restore the factory settings of the module

• Remote management and configuration: Users can use ZCL commands to remotely manage and configure other devices in the network
