Product Descriptions

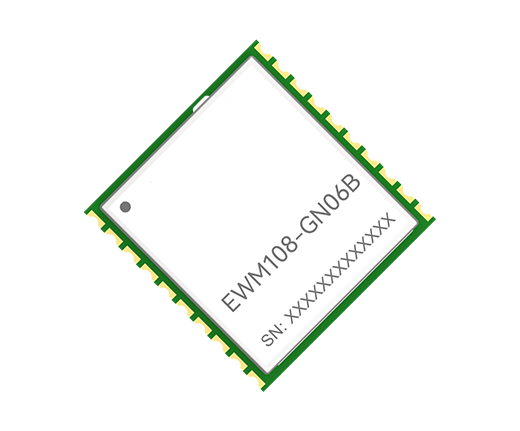

The EWM108-GN06B series single Beidou module is based on the new generation SOC single Beidou multi frequency chip AT9880B from Zhongke Micro, supporting B1I, B1C, B2I, B3I, B2a, and B2b frequency signals of Beidou-2 and Beidou-3.

The EWM108-GN06B series module is based on proprietary fast satellite search technology, which can quickly receive a large number of visible satellite signals, achieve fast and accurate positioning, and significantly improve positioning performance in complex environments such as urban canyons. Integrated high-performance embedded CPU, with a positioning update rate of up to 10Hz.

The EWM108-GN06B series module integrates a proprietary anti-interference hardware acceleration circuit, which can quickly detect and suppress RF interference. At the same time, it integrates a high-precision timing engine with a timing accuracy of better than 10ns, suitable for timing and positioning applications in fields such as power and 4G/5G communication. The new navigation integrated SOC single-chip technology has been applied, which can meet the applications of high-precision positioning and high-precision timing, and has the characteristics of high integration, high performance, low power consumption, and small size. It can be used in application fields such as wearable devices, mobile phones, IoT devices, drones, intelligent driving, precision agriculture, precision measurement, and power communication equipment.

Product Features

• Multi frequency single Beidou reception;

• Support Beidou-2 and Beidou-3;

• Support B1I, B1C, B2I, B3I, B2a, B2b;

• Support B1C independent positioning;

• Number of channels: 176 channels;

• The maximum positioning update rate can reach 20Hz;

• Support A-BDS;

• Support power management;

• Typical power consumption for dual frequency continuous operation:<50mA (@ 3.3V);

• Typical standby power consumption:<50uA (@ 3.3V);

• Built in antenna detection and antenna short circuit protection function.

Product Applications

• Vehicle positioning and navigation;

• Power timing, 4G/5G communication timing;

• Wearable devices;

• IoT positioning devices;

• Drones;

• Precision agriculture;

• Portable devices such as mobile phones and tablets.

Specifications
