Product Descriptions

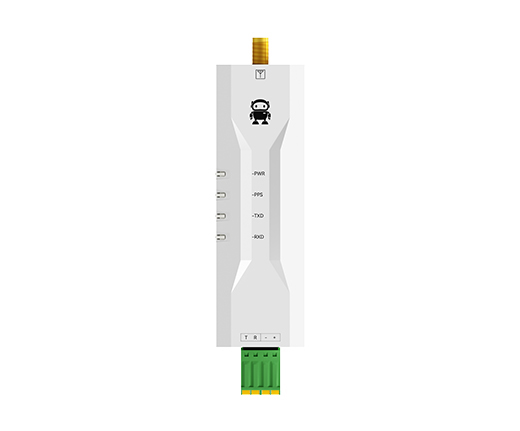

The EWD108-GN0x series is a positioning terminal that supports multiple positioning standards (GPS, Beidou, etc.) GLONASS、 Galileo et al., with fast response and precise positioning.

The device outputs positioning information through the Modbus RTU protocol, supports outputting RMC-ASCII strings that comply with the NMEA0183 protocol, and stores them separately in separate registers (longitude, longitude direction, latitude, latitude direction, etc.). The serial port baud rate can reach up to 115200bps and can be easily modified through the Modbus RTU protocol, making it convenient and fast.

Product Features

• Supports single system positioning for BDS/GPS/GLONASS/GALILEO/QZSS/SBAS satellite navigation systems, as well as any combination of multiple systems

• System joint positioning (different models support different positioning systems);

• EWD108-GN03 (xxx) supports satellite systems: BDS/GPS/GLONASS;

• EWD108-GN04 (xxx) supports satellite systems: BDS/GPS/GLONASS/ALILEO;

• EWD108-GN05 (xxx) supports satellite systems: BDS/GPS/GLONASS/GALILEO/QZSS/SBAS;

• EWD108-GN03 (232), EWD108-GN04 (232), EWD108-GN05 (232) communication interface: RS232;

• EWD108-GN03 (TTL), EWD108-GN04 (TTL), EWD108-GN05 (TTL) communication interfaces: UART;

• EWD108-GN03 (485), EWD108-GN04 (485), EWD108-GN05 (485) communication interface: RS485;

• Can configure multiple serial port baud rates (1200-115200bps);

• Support standard Modbus RTU protocol to read positioning information;

• Multiple positioning information output formats;

• Output antenna positioning status through registers and indicator lights;

• Support switching between active and passive antennas;

• Serial port supports TVS and overcurrent protection;

• Supports wide voltage input of DC5-24V;

• The EWD108-GN03 series has a positioning accuracy of up to 2.5 meters (CEP50);

• The EWD108-GN04 series has a positioning accuracy of up to 1.5 meters (CEP50);

• The EWD108-GN05 series has a positioning accuracy of up to 1.0 meter (CEP50);

• Support rail type and positioning hole installation;

• Industrial grade design, supporting working temperatures up to -40~85 ℃;

Product Applications

• Vehicle positioning and navigation equipment;

• Industry equipment with a demand for GNSS positioning or navigation;

• Asset tracking, etc;

Specifications
