Product Descriptions

The E108-GN03 series is a high-performance, highly integrated, low-power, and low-cost multi-mode satellite positioning and navigation module. Based on the AT6558R solution, it supports BDS/GPS/GLONASS, has a small size and low power consumption, and can be used in GNSS positioning applications such as car navigation, smart wearables, and drones. It also provides software and hardware interfaces compatible with other module manufacturers, greatly reducing the development cycle for users.

This module adopts an integrated RF baseband design, which integrates DCDC, LDO, RF front-end, low-power application processor, RAM, Flash storage, RTC, and power management. It can supply power to RTC and backup RAM through button batteries or Farad capacitors to reduce the first positioning time. It also supports multiple ways to connect with other peripherals, including UART, GPIO, RS232, RS485 interfaces. If you need I2C, SPI, USB interfaces, please contact customer service for customization.

Product Features

• Support BDS/GPS/GLONASS multi system joint positioning and single system independent positioning;

• Support all satellites of Beidou-2/3-1-63;

• Support A-GNSS assisted positioning;

• The highest update rate of positioning information can reach 10Hz;

• Development based on 32-bit RISC CPU;

• E108-GN03G series with casing, supports IP67 waterproof rating;

• Support PPS output;

• Built in reset controller;

• Supports UART, GPIO, RS232, RS485 interfaces;

• Equipped with active antenna detection and protection;

• Support power management function;

• Output format: Supports NMEA0183V4.1 and earlier versions;

• High sensitivity: Cold start -148dBm, hot start -156dBm, reacquisition -160dBm, tracking -162dBm;

• Compatible with software and hardware from other manufacturers, significantly reducing the development cycle for users;

Product Applications

• Vehicle positioning and navigation equipment;

• Wearable devices, such as GPS trackers, etc;

• Drone positioning, industrial computers, etc;

• Industry equipment with a demand for GNSS positioning or navigation;

• Portable devices such as mobile phones, tablets, etc.

• Asset tracking;

Specifications

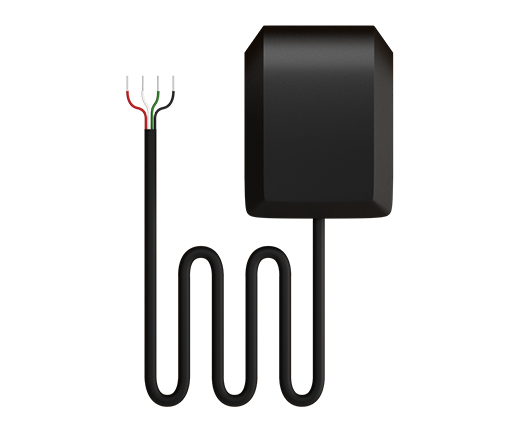

Actual product photos
