Specifications:Package Quantity: 1PCS

MB102 Prototype Board Breadboard

Product Name:Breadboard Power Supply Module.

BoardModel: MB102.

Output Voltage: 3.3v, 5V switchable.

Maximum Output Current: less than 700mA.

Input Voltage: 6.5-12v (dc) or USB power supply.

Two independent control, can switch to 0V, 3.3v, 5V.

The board has two sets of 3.3v and 5V DC output pins.

Note:

This is the power module, no prototype paper PCB board.

2.1mm x 5.5mm Male to 9V Battery Clip

Product Name: Battery Clip.

Cable length:6Inches.

Package: 1 PC MB102 Prototype Board Breadboard and 1PC Battery Clip.

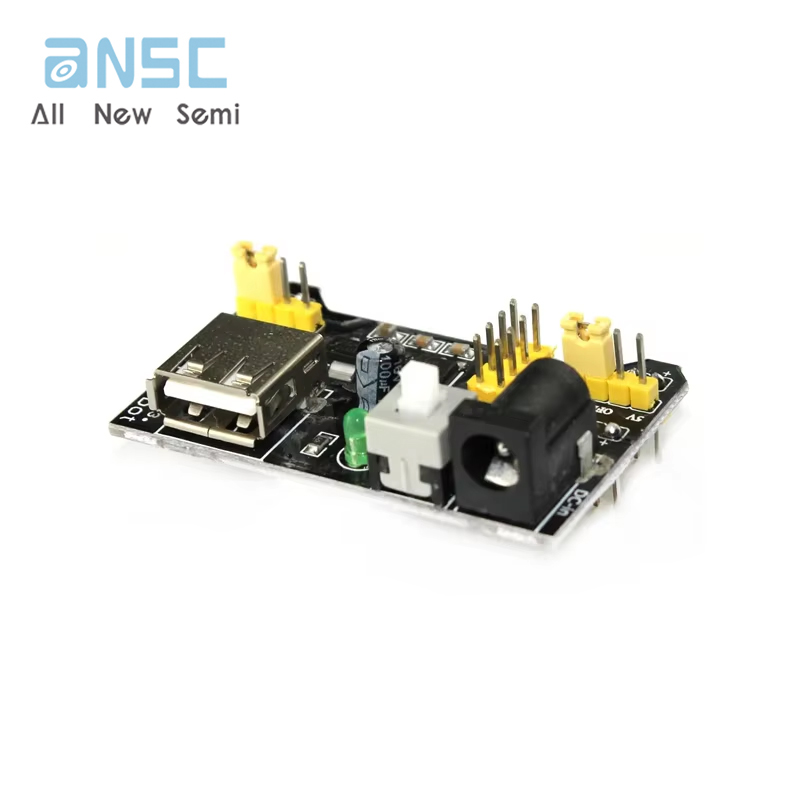

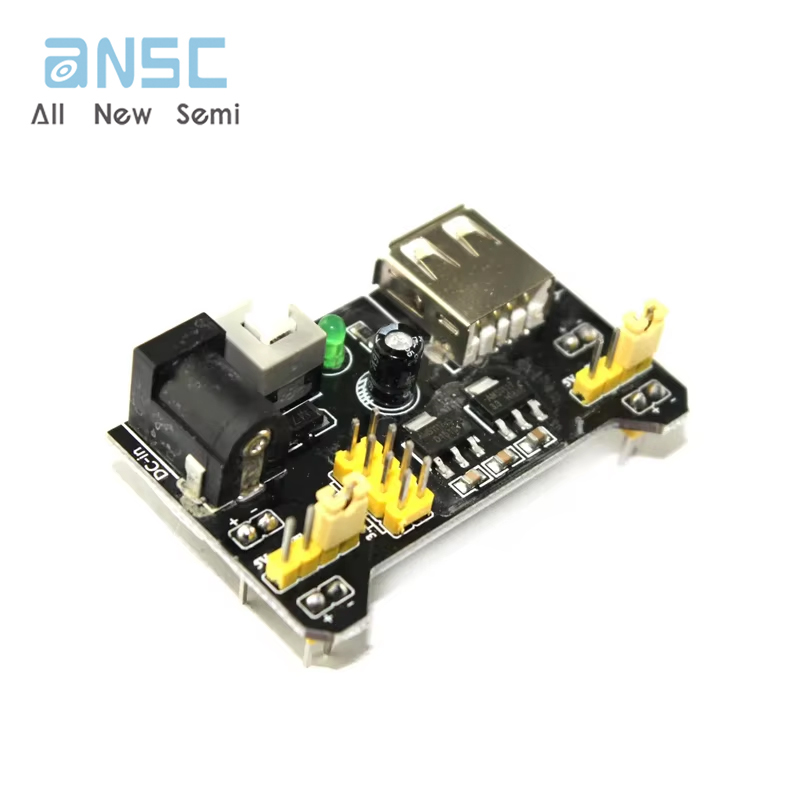

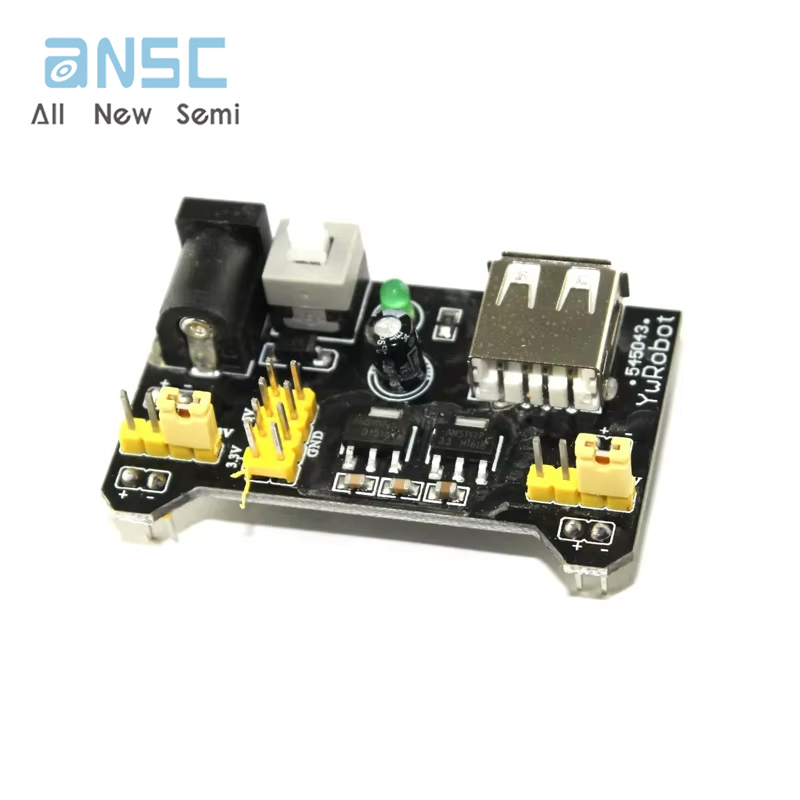

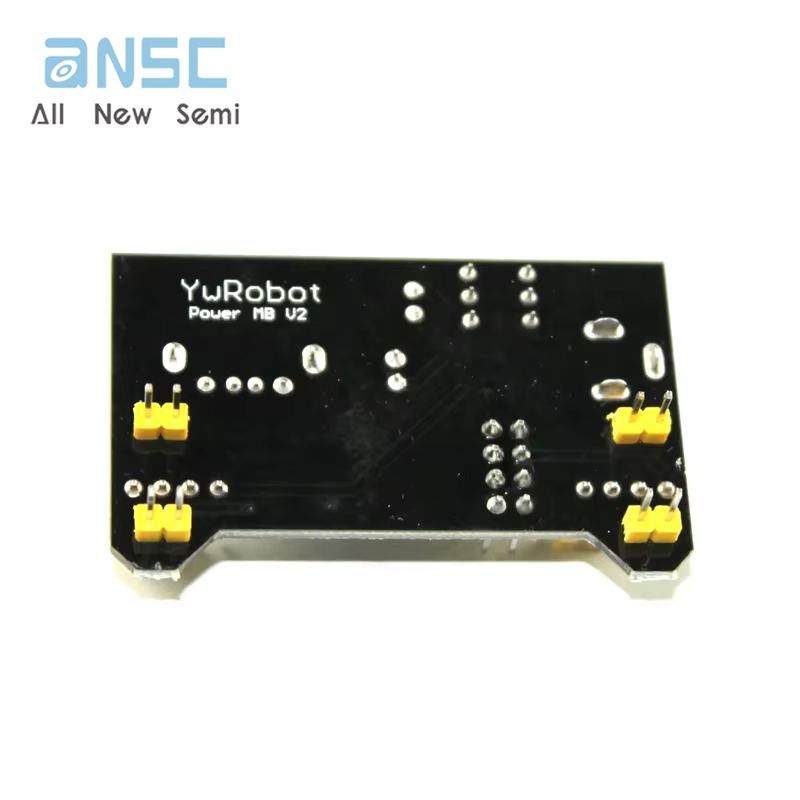

Actual image of the product
