Product Description
| Model Name: Micro 360 (Ultra-small DC-DC Synchronous Rectification Buck Module) Module Type: Non-isolated Buck Rectification Rectification Type: Synchronous Rectification Input Voltage: 4.75V-23V Output Voltage: 1.0V-17V Output Current: Maximum 3A, Typical 1.8A Conversion Efficiency: 96% (Maximum) Switching Frequency: 340KHz Output Ripple: 30mV (No Load) Load Regulation: ±0.5% Voltage Regulation: ±2.5% Operating Temperature: -40°C to +85°C Features: Uses integrated power inductor and synchronous rectification control chip for smaller size and higher efficiency. |

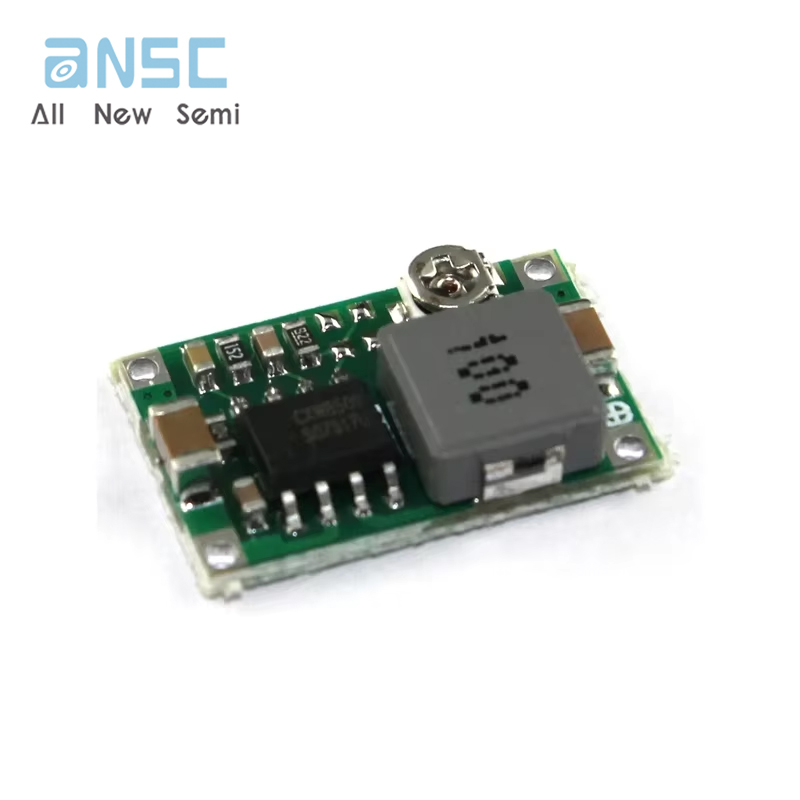

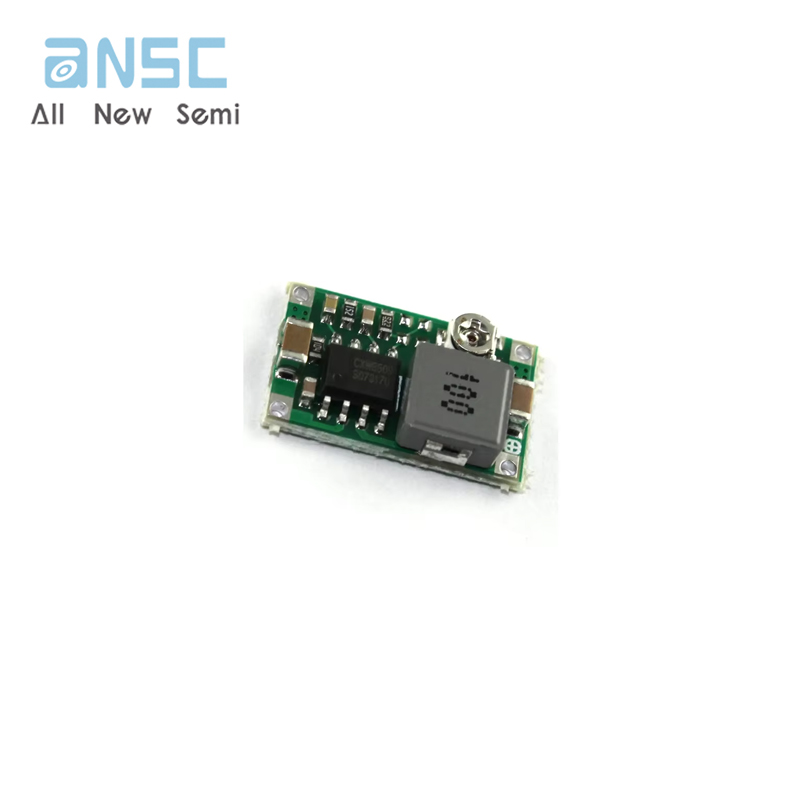

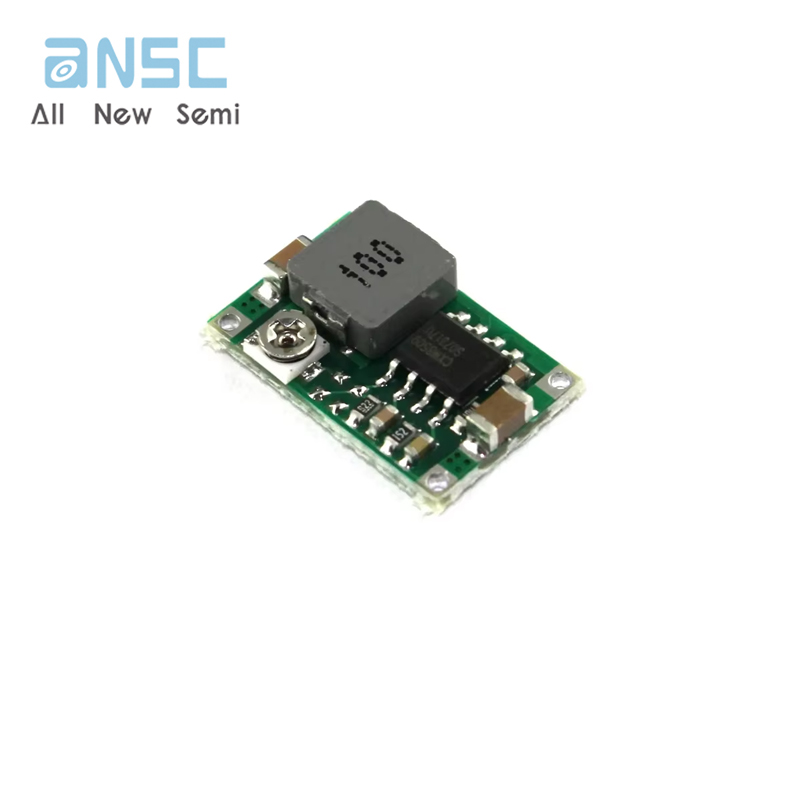

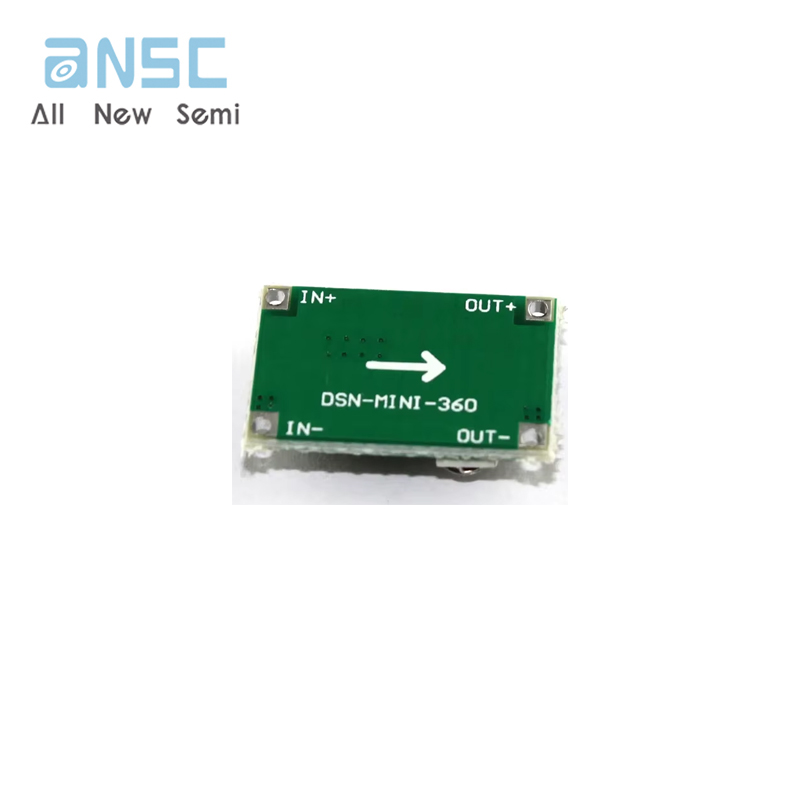

Actual image of the product
