Product Description
Product Introduction:
◆Dimensions (CM): L5.5×W1.3×H3.5
◆Input Voltage: +12V/DC (11.4V-12.6V)
◆Output power: 160W
◆Efficiency of the whole machine: >=92%
◆Operating temperature: 0°C~40°C
◆Storage temperature: -20°C~80°C
|
Output voltage |
Small value (V). |
Value (V). |
Light load (A). |
Heavy load (A). |
Ripple (mV). |
Wire color |
Short-circuit protection |
|
+12V |
11.40 |
12.60 |
0 |
3 |
120MAX |
Yellow |
crash |
|
+5V |
4.75 |
5.25 |
0 |
3 |
50MAX |
Red |
crash |
|
-12V |
-11.40 |
-12.60 |
0 |
0.1 |
240MAX |
Brown |
None |
|
+3.3V |
3.14 |
3.47 |
0 |
3 |
50MAX |
Orange |
crash |
|
+5VSB |
4.75 |
5.25 |
0 |
1 |
50MAX |
Purple |
crash |
Applications: MINI computers, all-in-one computers, POS machines, digital set-top boxes, ITX chassis, etc., network servers, advertising machines, bank terminals

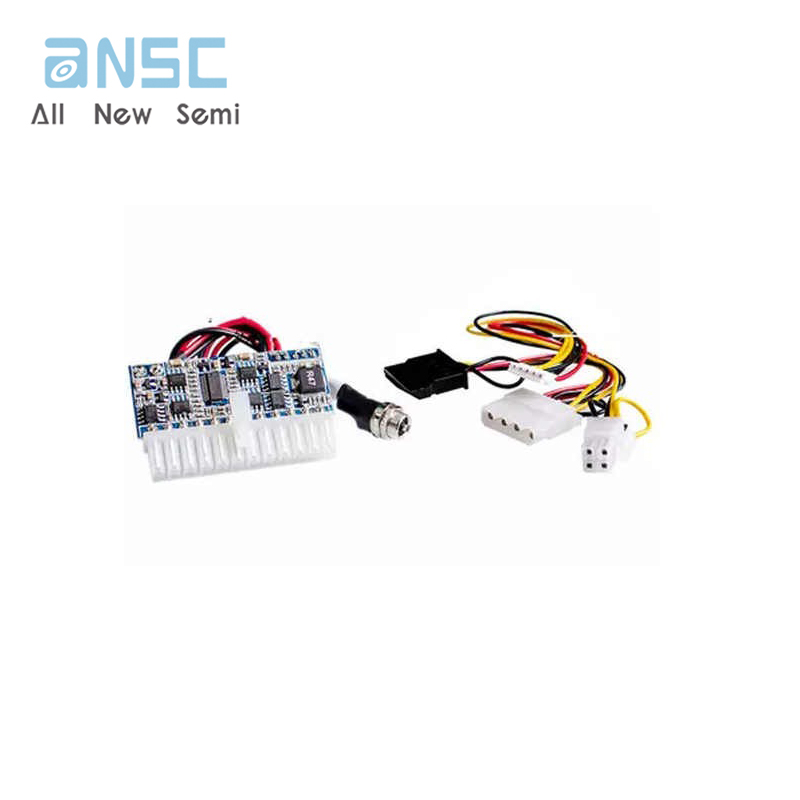

Actual image of the product
