Product Descriptions
These devices contain six independent drivers, each of which performs the logic identity function. The outputs require an external pull-up resistor for proper logical operation.
Product Features
■ Switching specifications at 50 pF
■ Switching specifications guaranteed over full temperature and VCC range
■ Advanced oxide-isolated, ion-implanted Schottky TTL process
■ Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart
■ Improved AC performance over Schottky and low power Schottky counterparts
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DM74ALS1035MX |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74ALS |
| Packaging | Bulk |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Output Type | Open Collector |
| Current - Output High, Low | -, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | 74ALS1035 |

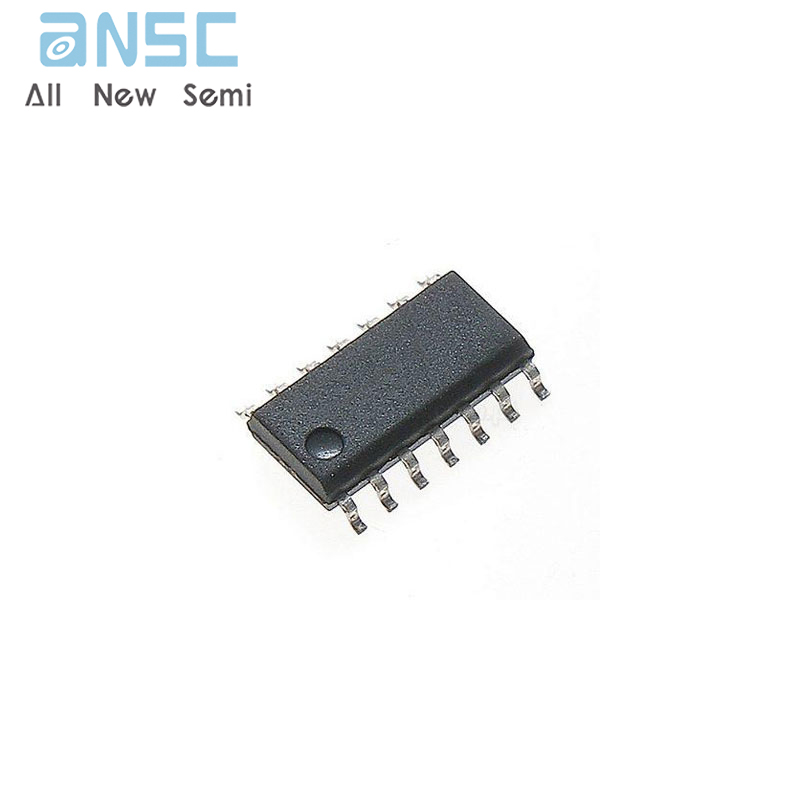

Product Photos
