Product Descriptions
The NME series of DC/DC Converters is particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from –40°C and full 1 watt output at 85°C. For lower ripple, refer to output ripple reduction section.
Product Features
RoHS compliant
Single isolated output
1kVDC isolation
Efficiency up to 80 PERCENT
Wide temperature performance at full 1 watt load, –40°C to 85°C
Power density 1.53W/cm3
UL 94V-0 package material
Footprint from 0.69cm2
Industry standard pinout
5V & 12V input
5V, 9V, 12V and 15V output
No heatsink required
Internal SMD construction
Fully encapsulated with toroidal magnetics
No external components required
MTTF up to 3.4 million hours
Custom solutions available
Pin compatible with LME & NML series
PCB mounting
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NME0505SC |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | - |
| Series | NME (1W) |
| Packaging | Tube |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 69% |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) |
| Base Product Number | NME05 |

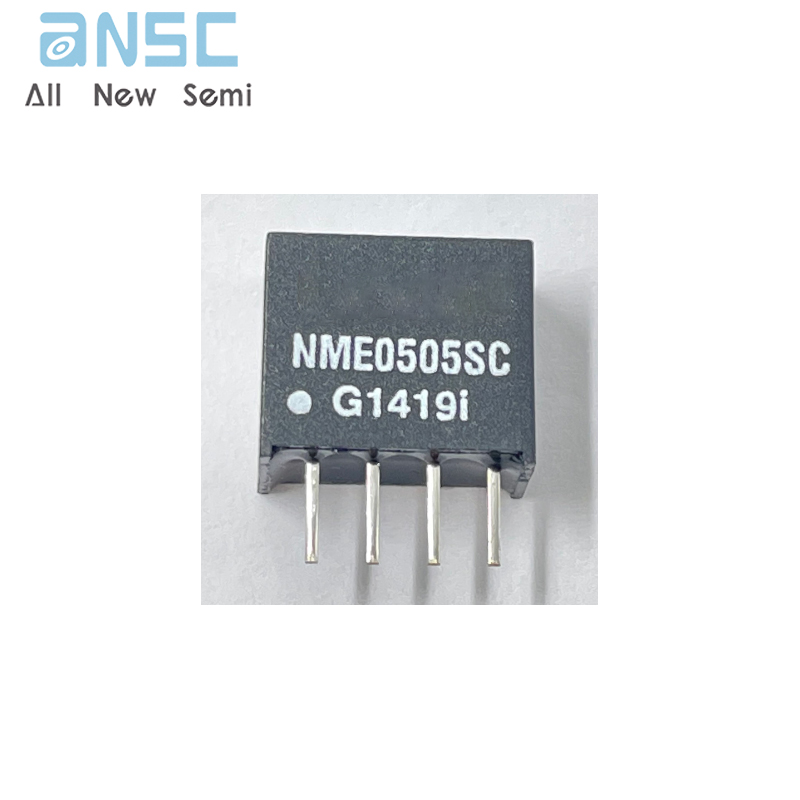

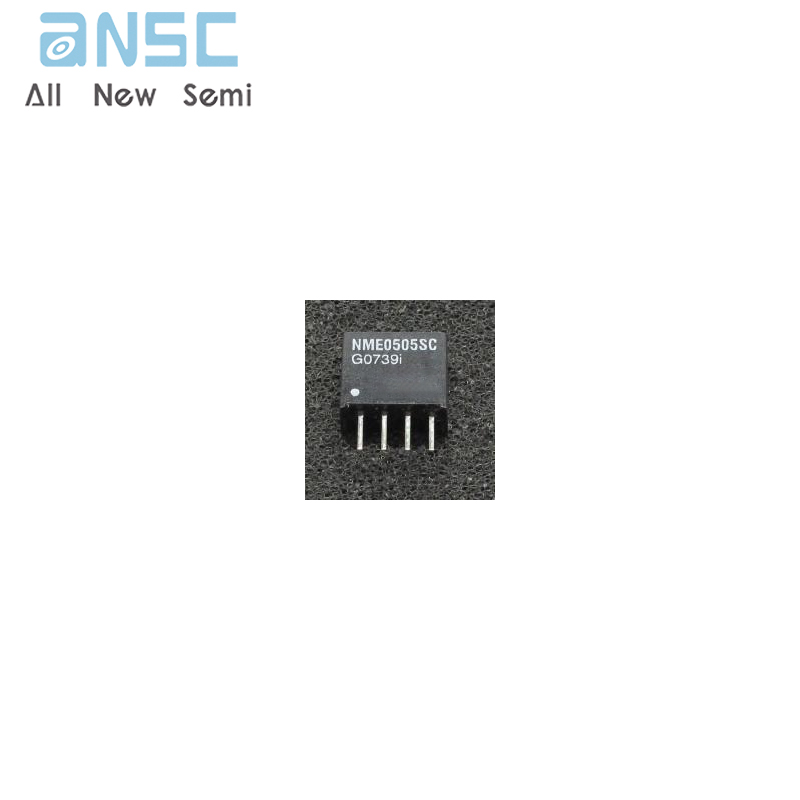

Product Photos
