G18u8ttl GPS / GLONASS / BDS module GPS module high sensitivity GLONASS Integrated Module
Product highlights: |
Product main chip: u-blast ubx-m8030 |

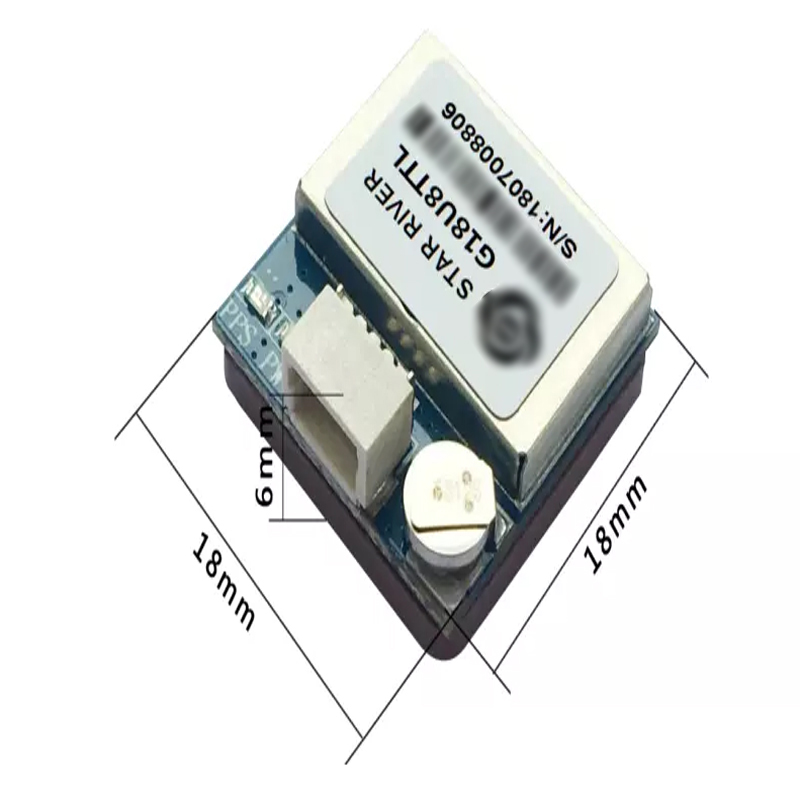

Product size: 18 x 18 x 6 mm |
LNA signal amplifier built in |
Industry standard 18 x 18 x 2mm high sensitivity ceramic antenna |

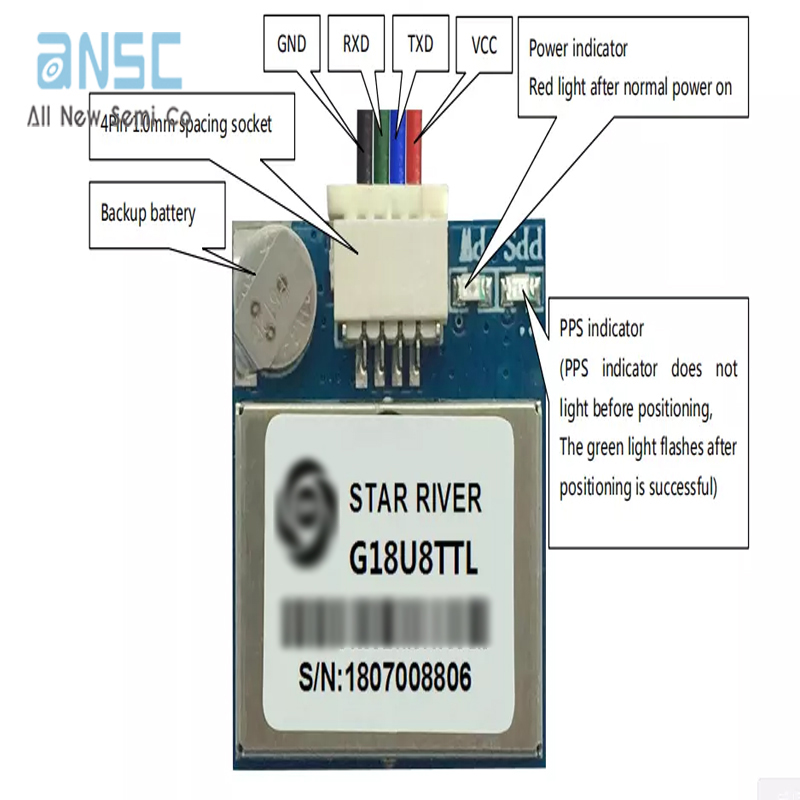

Built in TCXO crystal and Faraday capacitor for faster hot start |
1-10hz location update rate |
The module adopts the ublox positioning chip, which is a g-mouse that can
receive satellite signals with 72 channels, low power consumption, high
sensitivity and high sensitivity. It can locate the weak signals in cities, canyons,
viaducts and any position in the car quickly and accurately. The module can be
widely used in vehicle monitoring, bus station reporting, vehicle navigation,
ship navigation, notebook navigation and other products.
NMEA 0183 output
GGA:Time, location, location type
GLL:Longitude, latitude, UTC time
GSA:GPS receiver operation mode, satellite used for positioning,DOP value
GSV:Visible GPS satellite information, elevation, azimuth and SNR
RMC:Time, date, location, speed
VTG:Ground speed information
