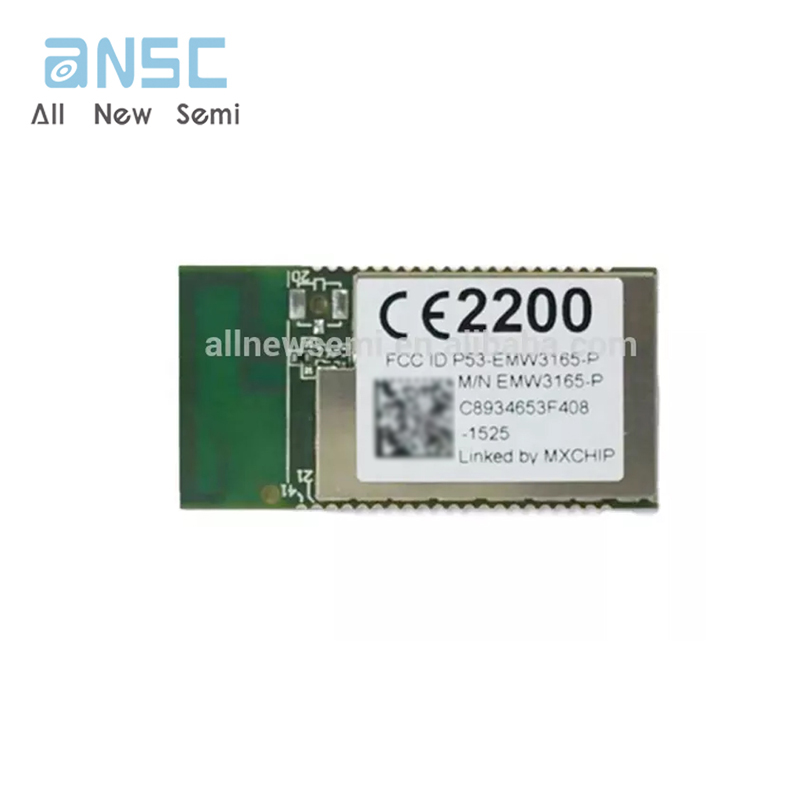

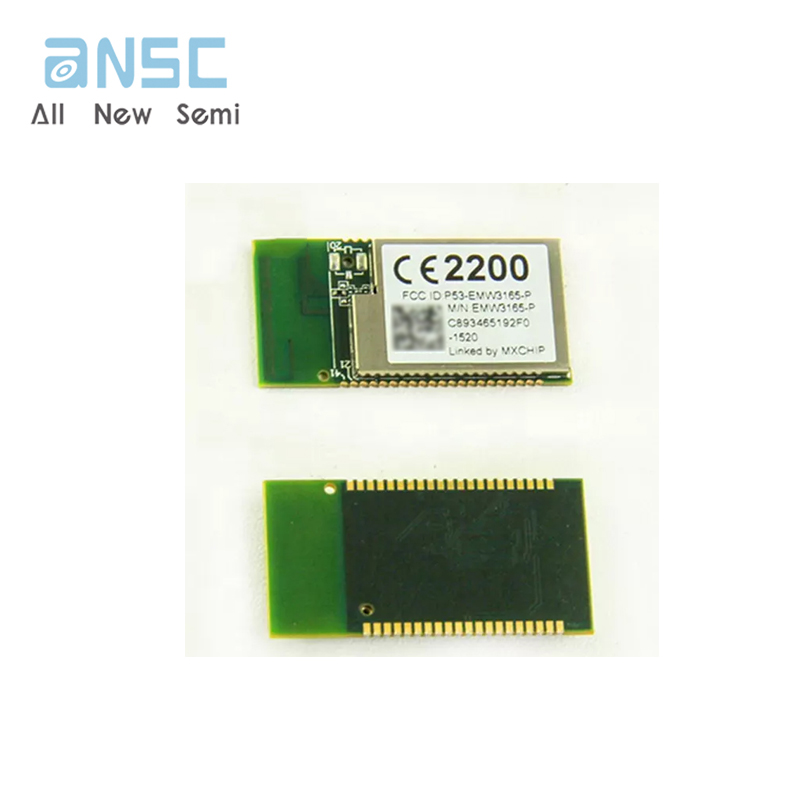

EMW3165 Cortex-M4 microcontroller wifi module

EMW3165

Model:EMW3165

Manufacturer:MXCHIP

Package:Module

certificationthe FCC, CE, TELEC

coloras photos

After-sales Service ProvidedNo overseas service provided

PackingNew*original Packing

Working voltage3V-3.6V

Peripherals(1)22 GPIO foot

Peripherals(2)JTAG/SWD debug interface

Working temperature- 30 ℃ to + 85 ℃

WiFi connectivityboard PCB antenna, an external antenna IPEX connector

Detail

EMW3165 Cortex-M4 microcontroller wifi module

EMW3165 is a low-power embedded Wi-Fi module integrates a wireless LAN MAC/baseband /radio, and a Cortex-M4 microcontroller STM32F411CE that runs a unique "self-hosted" Wi-Fi networking library and software application stack. EMW3165 has 2M bytes of on-board flash besides 512K bytes of in-chip flash, 128K bytes RAM and rich peripherals for user embedded Wi-Fi applications.
EMW3165 is also a MiCO  platform, users can build their own embedded Wi-Fi applications based on MiCO library which manage all of the Wi-Fi MAC and TCP/IP stack processing. We also provide independent series of particular firmware to meet typical applications: Wireless UART, Cloud Service etc.
Features:
Consists of a Cortex-M4 microcontroller and an IEEE 802.11™  b/g/n chip
Cortex-M4 core at 100MHz
2M bytes on-board SPI flash and 512K bytes on-chip flash
128K bytes RAM
Operation voltage:3.0V~3.6V
Peripherals
22 GPIOs
JTAG/SWD debug interface
Wi-Fi connectivity
802.11b, 802.11g, 802.11n (single stream)
WEP, WPA/WPA2 PSK/Enterprise
16.5dBm@11b,14.5dBm@11g 13.5dBm@11
Receiver Sensitivity: -87 dBm
Station, Soft AP and Wi-Fi directSupport EasyLink

On-board PCB antenna,IPEX connector for external antenna

CE,FCC compliant

EMW3165 Cortex-M4 microcontroller wifi module Features:
Contains a architecture (M4 micro controller and an IEEE 802.11 b/g/n rf chip
- 100 MHZ architecture (M4 kernel
- 2 m bytes outside SPI flash and 512 k
Flash - proglottid
- $128 k bytes of RAM
WiFi connectivity
- support 802.11 b/g/n
- WEP, WPA/connected, PSK/Enterprise

11 b - 16.5 dBm @, 14.5 dBm @ 11 g, 13.5 d- Bm @ 11 n

- receiving sensitivity: - 87 dBm
- Station, Soft AP and WiFi Direct

- support EasyLink

- board PCB antenna, an external antenna IPEX connector

21345

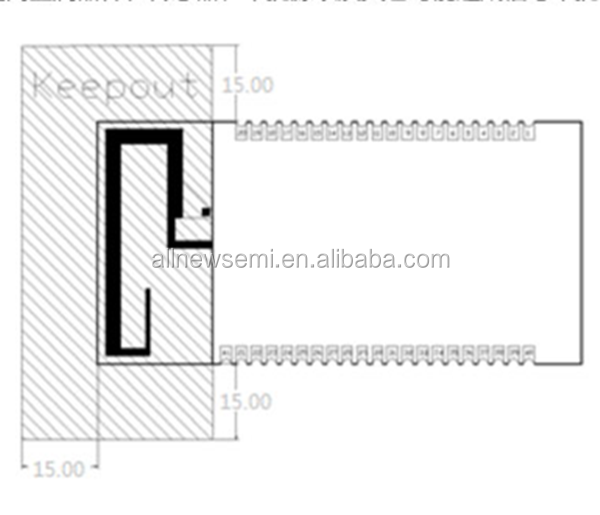

Provide both hardware reference design, antenna design, and SDK for secondary development
