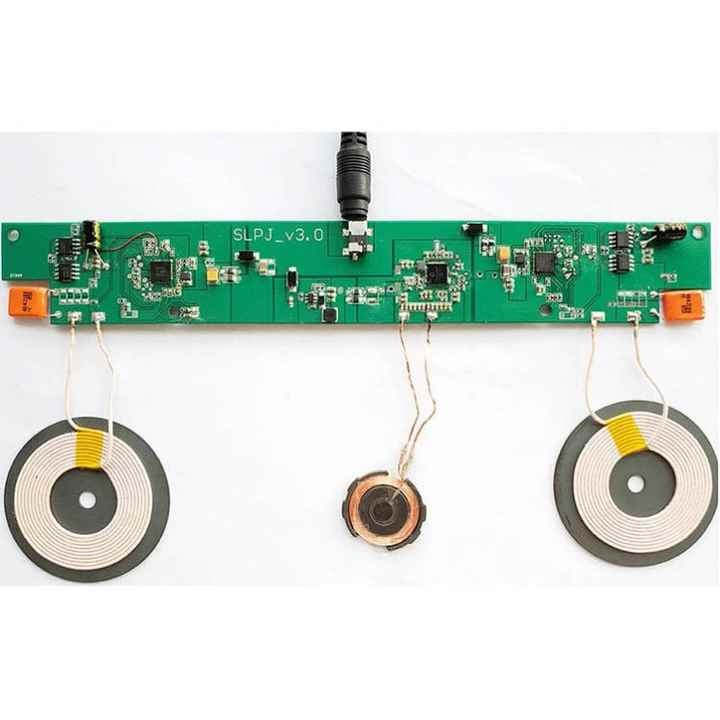

| Custom 3 in 1 wireless charger PCBA for cellphone for smart watch |
|
| Product Specification: |
| Master: RT3181A |
| Input: 12/2.5A (MAX) |
| Mobile phone output: 5V/2A, 9V/1.5A |
| Watch output: 5V/700mA |
| Working mode: variable frequency voltage regulation,constant frequency adjustment duty cycle |
| Working frequency: 110KHz-205KHz (mobile phone), 326.8KHz (Watch) |
| Charging distance: 5mm-8mm |
| Over temperature protection: 65 degrees protection, 45 degree protection |
| Overcurrent protection: input 3A protection |
| Drive mode: external half bridge drive |
| Driver chip: RT9612B |
| Power MOS: PDS3812-double NMOS |
| Carrier Demodulation: Built-in Demodulation |
| QI standard: V1.2.4 |
| Coil specification: A11-double |
| Other features: FOD, DPL |
| Size: 210mmX30mm |
| Product Feature: |
| * For OEM order MOQ is 1000pcs , free print logo . |
| * Support for the custom water cup made . |
| * The selling products not only we design by our idea , but we also make the custom proucts that suit for your special prouducts use . |
