Product Details
Features
• Including Free Wheeling Diode
• High DC Current Gain
• Insulated Type
Applications
• High Power Switching
• A.C Motor Controls
• D.C Motor Controls
• Uninterruptible Power Supply
Product Description
| Type# | Description |
| PART# | 2DI75D-050A |
| Manufacturer |
/ |
| Package Description | FLANGE MOUNT, R-XUFM-X3 |
| Pin Count | 7 |
| Collector Current-Max (IC) | 75 A |
| Collector-Emitter Voltage-Max | 600 V |
| Configuration | DARLINGTON, 3 TRANSISTORS WITH BUILT-IN DIODE AND RESISTOR |
| DC Current Gain-Min (hFE) | 100 |
| Fall Time-Max (tf) | 4000 ns |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | NPN |
| Power Dissipation Ambient-Max | 350 W |
| Power Dissipation-Max (Abs) | 350 W |
| Qualification Status | Not Qualified |
| Rise Time-Max (tr) | 3000 ns |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Turn-off Time-Max (toff) | 16000 ns |
| Turn-on Time-Max (ton) | 3000 ns |

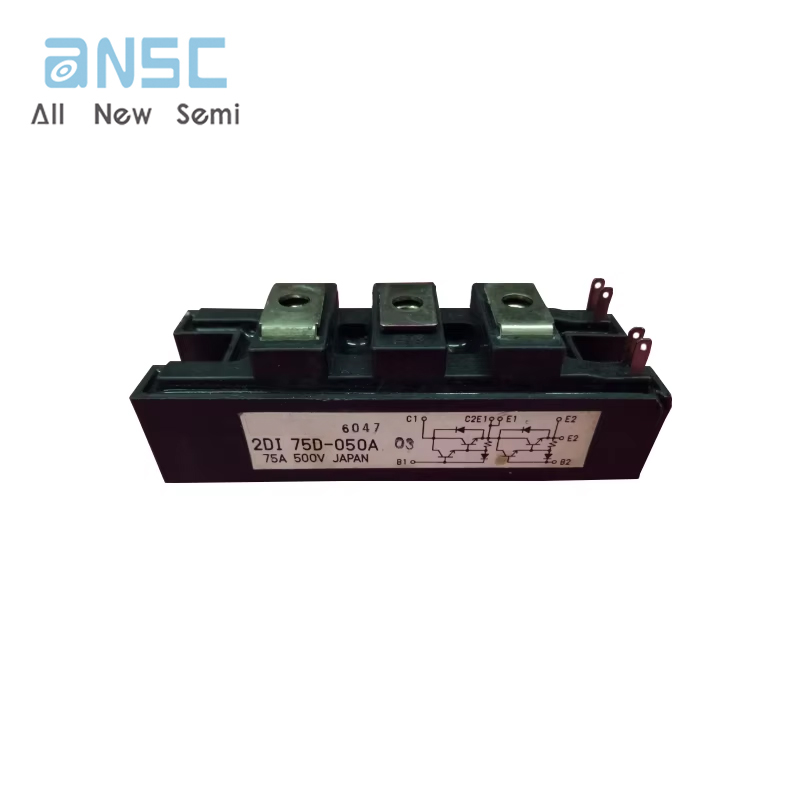

Actual image of the product
