Product Details
| BC840M Overview The RF Transceiver' mounting method adopted is Surface Mount.It is designed to provide optimal performance by utilizing the Tape & Reel (TR) package.-40°C~85°C should be the operating temperature when Transceiver is operating.It is possible for the RF Transceiver to supply voltages of 1.7V~5.5V.There is 2.4GHz frequency set for the RF Transceiver Module. Surface Mount Tape & Reel (TR) package 1.7V~5.5V volts BC840M Applications BC840M RF Transceiver Modules applications. Transmit Receive Switch Power management Internet of Things (IoT) Secure Payment Home and Security Health and Fitness Industrial and Data Logger LED Lighting |
Product Description
| Type# | Description |
| Part# | BC840M |
| category | RF/IF, RF/IF and RFID |
| RF Transceiver Modules and Modems | |
| manufacturer | Original |
| series | - |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| Product Status | in stock |
| RF Series/Standard | 802.15.4, Bluetooth |
| protocol | Bluetooth v5.0, Thread, Zigbee庐 |
| modulation | - |
| frequency | 2.4GHz |
| data rate | 2Mbps |
| power - output | 8dBm |
| Sensitivity | -96dBm |
| serial interface | ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB |
| Antenna type | PCB traces |
| IC/Parts used | nRF52840-CKAA |
| storage | 1MB Flash, 256kB RAM |
| Voltage - Powered | 1.7V ~ 5.5V |
| Current - receive | - |
| current - transmission | - |
| installation type | Surface Mount Type |
| Operating temperature | -40°C ~ 85°C |
| Package/Enclosure | 64-SMD module |
| Basic product number | BC840 |
Actual image of the product

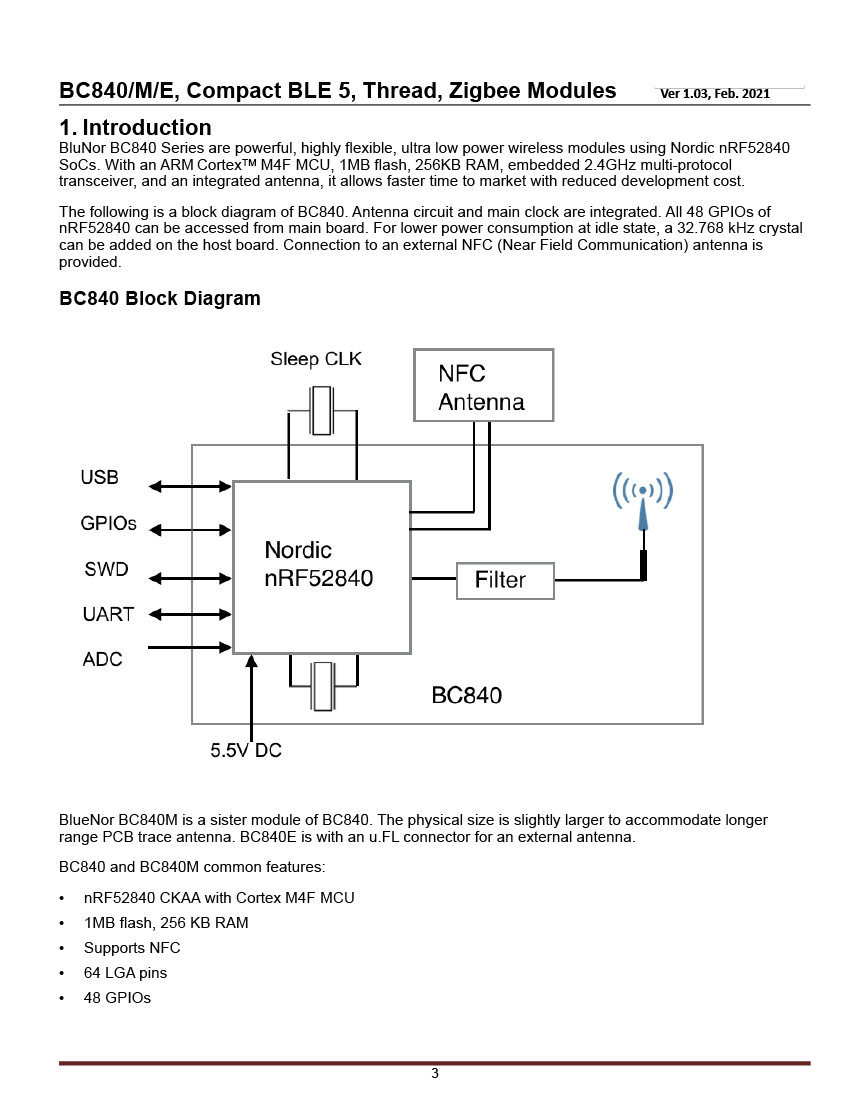

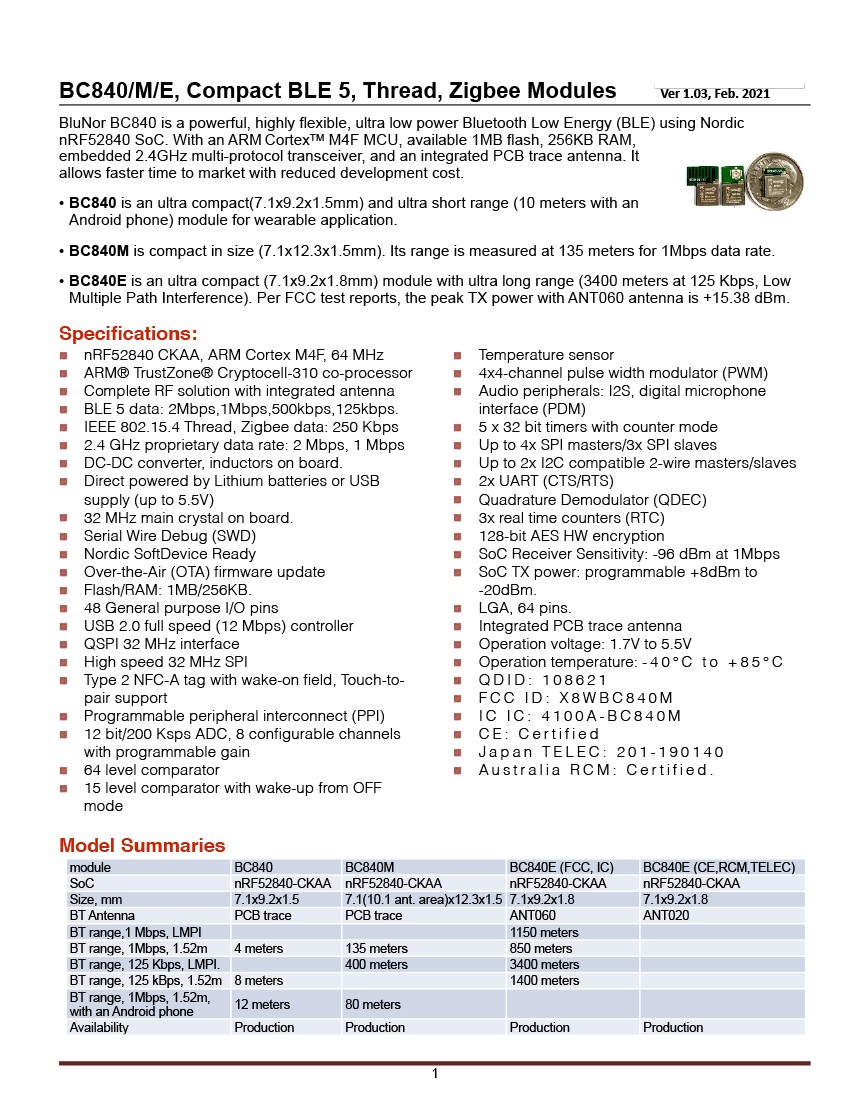

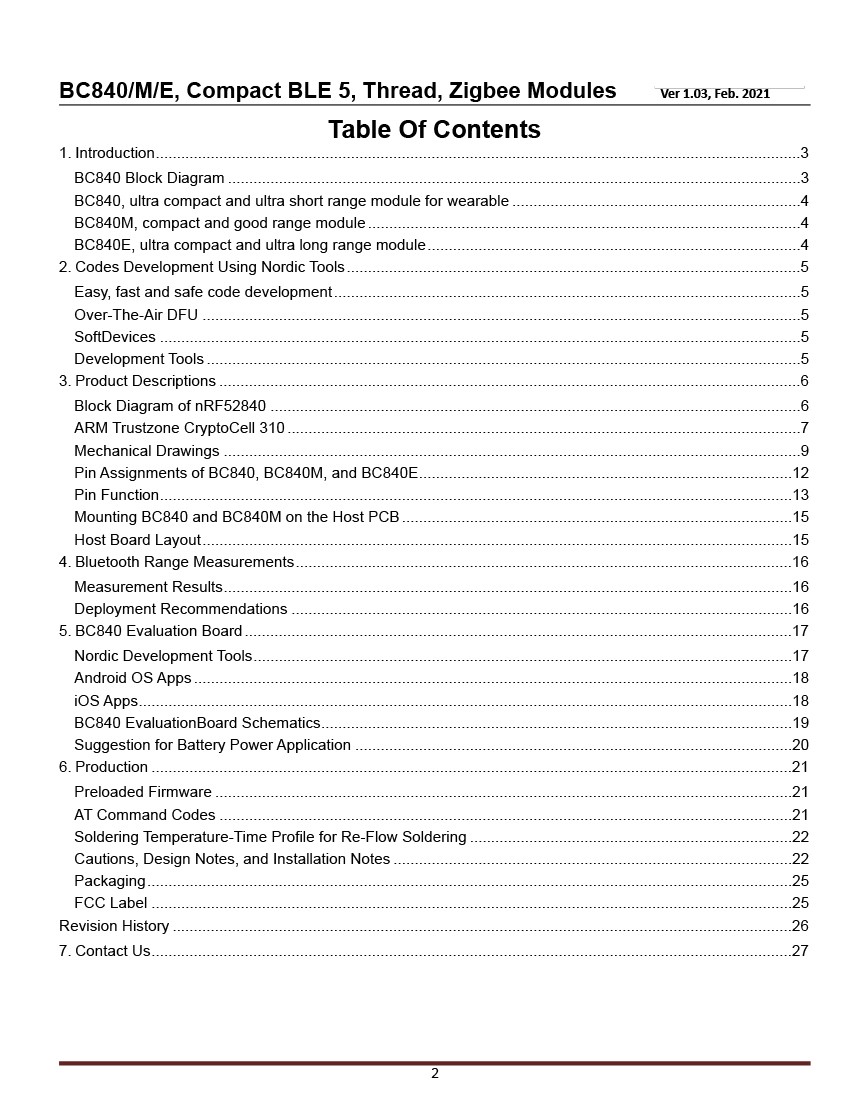

Product datasheet
