Product Description

Input voltage:DC4V-20V

Optional output voltage:18V/24V/36V

Output current:300mA MAX

Output power:Adjust according to the actual situation

Maximum efficiency: 90%

Average working life :50000hours

Size:22*42mm

Product introduction:The 18V / 24V / 36V optional step-down module is a DC-DC power supply boost module. It can output three different voltage values. Just put the jumper cap in the corresponding position of the module. The 18V / 24V / 36V optional boost module has wide input voltage, over-current protection, small size, high reliability, high performance price ratio, optional output voltage, etc.

Product advantages:

√Wide voltage input of 4v-20v, with strong adaptability

√ short circuit protection and over-voltage protection are provided to prevent components from being damaged

√ the module uses industrial electronic components, with long service life and 50000 hours of working time

√The output voltage of 18V / 24V / 36V can be selected to meet different power supply requirements

√ led working indicator

√ factory direct supply, quality assurance

Remarks: the maximum output power is 5.4w at 18V output

When the output voltage is 24 V, the maximum output power is 7.2 W

The maximum output power is 10.8w at 36V output

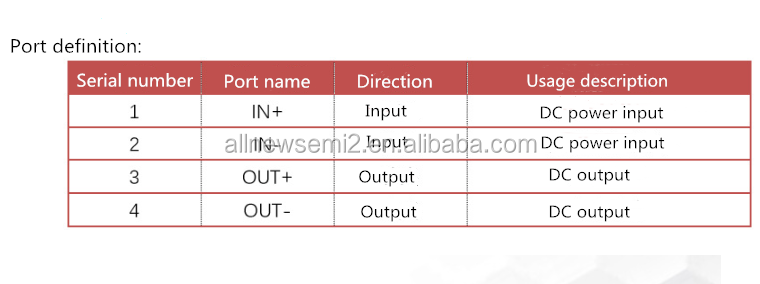

How to use: connect the module to the power supply according to the picture above (check whether the wiring is correct), and then use the jumper cap to select the corresponding output voltage value. After the module is powered on, the LED working indicator lights up and the corresponding voltage can be output.

Wiring mode: terminal, no iron can be used easily

Application field: This module can be used in DIY power supply, 4v-16.5v to 18V, 4v-20v to 24V, 4v-20v to 36V, etc. It can also supply power to electronic equipment. When the equipment needs 18V / 24V / 36V power supply and there is no corresponding power supply in hand, this module can easily provide the required voltage and solve the problem.

Note: input / output positive and negative poles cannot be reversed. Reverse connection may burn the equipment. Since it is a step-down module, in order to ensure the normal operation of the module, please keep the input voltage at 4v-20v, and keep the input voltage 1.5V higher than the output voltage. When adjusting the output voltage, do not operate with power.
