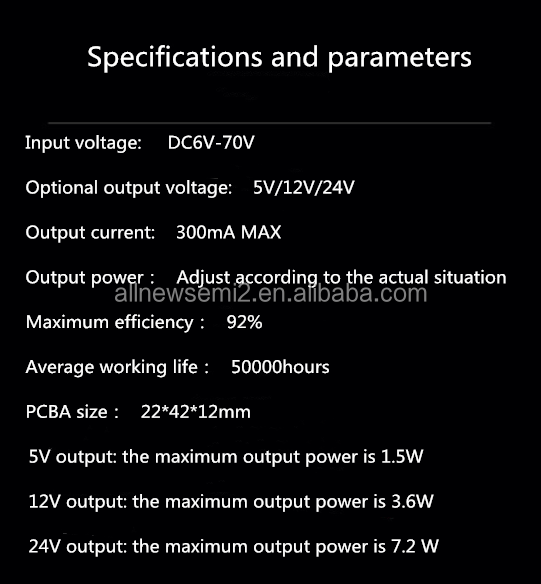

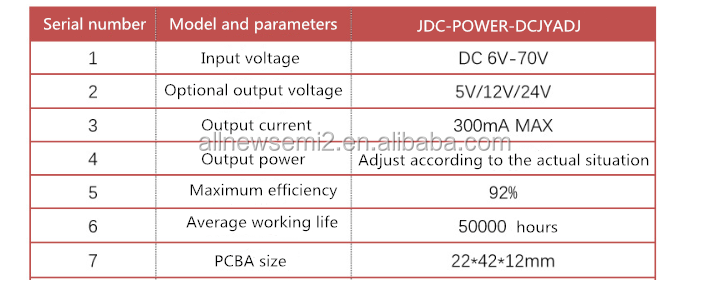

Product Description

Input voltage:DC6V-70V

Optional output voltage:5V/12V/24V

Output current:300mA MAX

Output power:Adjust according to the actual situation

Maximum efficiency:92%

Average working life:50000hours

PCBA size:22*42*12mm

Product introduction:

The 5V / 12V / 24V optional step-down module is a DC-DC power supply step-down module. It can output three different voltage values. Just put the jumper cap in the corresponding position of the module. 5V / 12V / 24V optional step-down module has wide input voltage, over-current protection, small size, high reliability, high performance price ratio, optional output voltage, etc.

Usage:Connect the module to the power supply (check if the connection is correct), and then use the jumper cap to select the corresponding output voltage value. After the module is powered on, the LED working indicator lights up, which can output the corresponding voltage.

Application field: This module can be used in DIY power supply, 6.5v-70v to 5V, 13.5v-70v to 12V, 25.5v-70v to 24V, etc. It can also supply power to electronic equipment. When the equipment needs 5V / 12V / 24V power supply and there is no corresponding power supply in hand, this module can easily provide the required voltage.

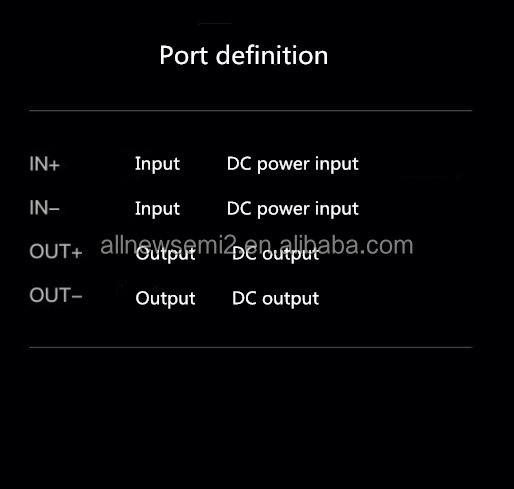

Output:I/O positive and negative poles cannot be reversed. In order to ensure the input voltage of the module is higher than 5V, please keep the input voltage at 5V.

When adjusting the output voltage, do not operate with power.
