Input 24V/5A Output 58.8V/1.7A 100W high-power wireless charging receiving module + transmitting module
Product Specification:
Working model : Electromagnetic induction (single coil)
Working frequency:50-150KHz
Input :24V/5A Above
Output:58.8V/1.7A Max
Charging distance : 20-30mm

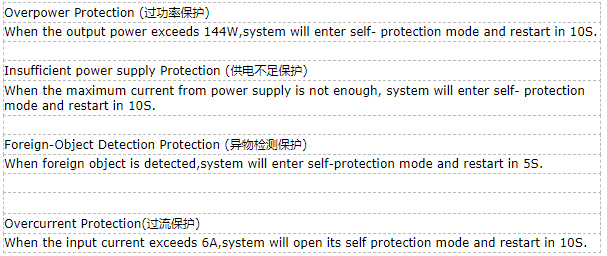

Fod : Support
OCP :Option (Default max=9A)

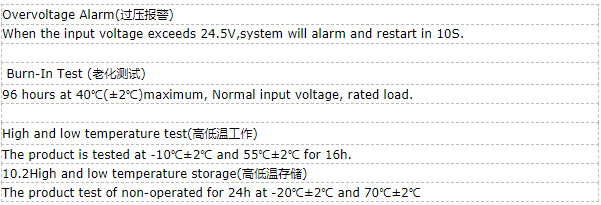

OVP :Option (Default max=24.5A)
OPP :Option (Default Pmax= 180W)

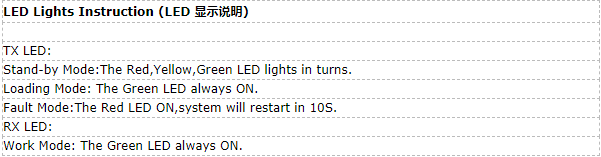

LDE Display : Support
Buzzer : Support
Product Feature
About us
How to get a custom type wireless charging and transmitting module quote:
| 1.What machine to use |
| 2. Input voltage + current |
| 3. Output voltage + current |
| 4. Shape + size requirements |
| 5. Coil requirements (1 coil? 2 coils? 3 coils or ..?) |
| 6. Plug / Welding wire Detailed requirements |
| 7. Quantity |
| 8. Certification requirements |
| 9. Other requirements |
This is a customized product, please contact us for price and more details.
