Product Overview
The package is delivered in a Cut Tape (CT) case. In order to package the IC voltage regulator, a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case is used. On the Voltage regulator IC, there are 5 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. As you can see, the regulator IC has a total of 4 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 5 pins may be available. For your information, part number TPS75533 is the basic part number for this voltage regulator IC. There is a TAPE AND REEL way of packing the IC voltage regulators in the box. There is a maximum output current of 5A for this regulator to meet the operational requirements. It operates in the 120μA Quiescent Current state.
Product Features
250mV dropout voltage
TAPE AND REEL method of packing
Product Applications
| CPU power supply | Digital TV |
| Switching regulator | Smartcard |
| Multiple-power supply system | Industrial equipment |
| Digital audio player | DVD and CD-ROM drive |
| Measurement and control euipment | Quick charge protocols |
Product Description
Type | Description |
|---|---|
ANSC PART# | ANSC - TPS75533KTTT |
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
Mfr | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Obsolete |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 5.5V |
Voltage - Output (Min/Fixed) | 3.3V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.5V @ 5A |
Current - Output | 5A |
Current - Quiescent (Iq) | 200 µA |
PSRR | 60dB (100Hz) |
Control Features | Enable, Power Good |
Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
Supplier Device Package | TO-263 (DDPAK-5) |
Base Product Number | TPS75533 |

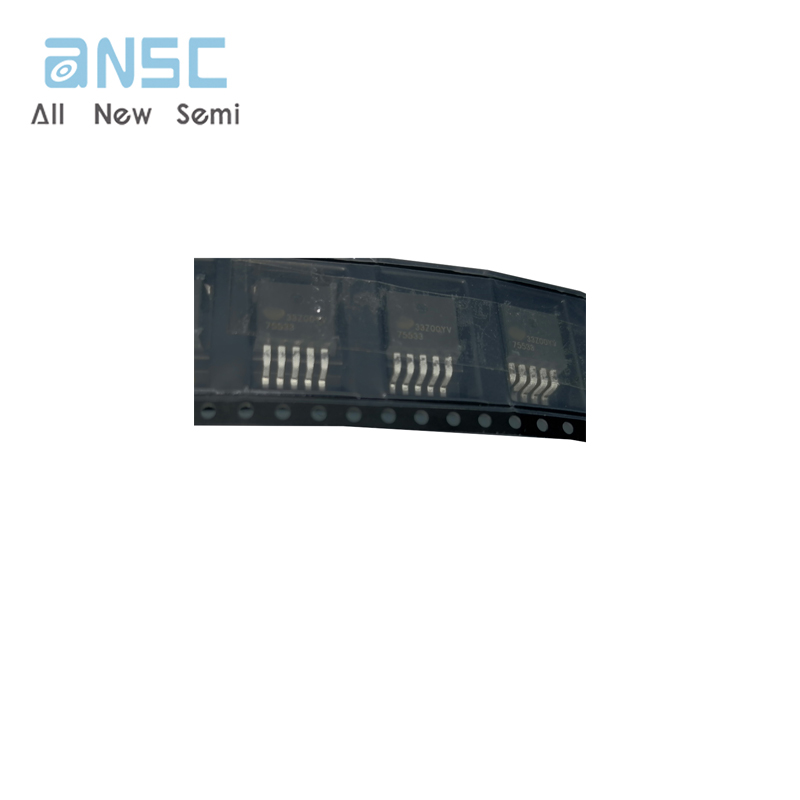

Actual image of the product
