Product Descriptions

The EM78P374N is an 8-bit microprocessor designed and developed with low-power, high-speed CMOS technology.  It is used for 15 bits kernel simulation and it simulates the 4K15-bit programmable ROMand 3048-bit In-system programmable SRAM.Using the ICE370N, users can develop their program for ELAN’s several OTP types of IC.

Products Features

CPU Configuration

Support 4KX15bits programROM

3048 bits on-chip registers (SRAM)

More than 10 years data retention

8-level stacks for subroutine nesting

Dual clock operation mode

Four programmable Level Voltage Detector (LVD) : 4.5V, 4V, 3.3V, 2.2V

Fourprogrammable Level Voltage Reset (LVR) : 4.0V,3.5V,2.7V,1.8V(POR)

Poweron reset level Voltage: 1.8V~1.9V

Less than 1.0mA at 5V/4MHz

Typically 15μA, at 3V/16kHz

Typically 2μA, during sleep mode

Fouroperation modes

I/O Port Configuration6 bi-directional I/O ports: P5, P6 andP7

22 I/O pins

22Programmable open-drain I/O pins

21programmable pull-high I/O pins

21programmable pull-downI/O pins

21programmablehigh sink/drive I/O pins

External interrupt : INT0

Operating voltage range:

2.1V~5.5V at 0~70℃(commercial)

2.3V~5.5V at -40~85℃(industrial)

Specifications

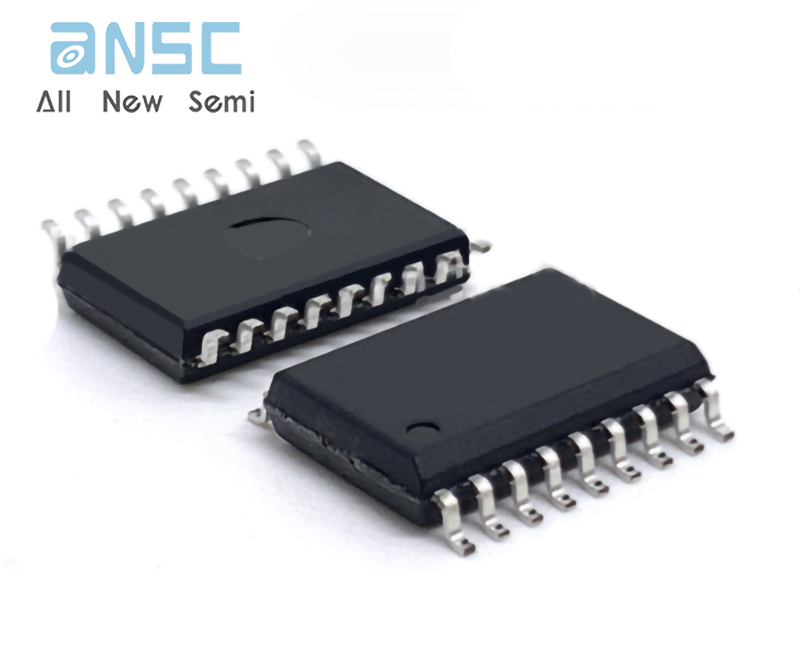

Actual product photos
