Product Introduction

SC95F7617/7616/7615/7613 (hereinafter referred to as the SC95F761X) is a series of enhanced 1T 8051 core industry-standard Flash Microcontroller unit (MCU) with integrated TouchKey function, the instruction set is compatible with the standard 80C51 series.

The SC95F761X has a Super-high-speed 1T 8051 CPU core with an operating frequency of up to 32 MHz.

The SC95F761X integrates a hardware multiplier and divider and dual DPTR data pointers to accelerate data operations and movement speed. The hardware multiplier and divider does not occupy CPU cycles, and the operation is implemented by hardware, and the speed is dozens of times faster than the multiplication and division speed realized by software; dual DPTR data pointers can be used to accelerate data storage and movement.

The SC95F761X has high performance and reliability, with a wide operating voltage of 2.0V~5.5V, a super-wide operating temperature of -40°C to 105°C, and powerful 6KV ESD and 4KV EFT capabilities. Using the industryleading eFlash process, the Flash can be written more than 100,000 times, and can be stored for 100 years at room temperature.

The SC95F761X has a built-in low power consumption WDT Watchdog Timer. It has a 4-level selectable voltage LVR low voltage reset function and a system clock monitoring function. It has low power consumption capability in operation and power-down modes. Under normal operating mode: about 5.2mA@32M at 5V.

Products Features

Operating Conditions

⚫ Voltage Range: 2.0V~5.5V

⚫ Temperature Range: -40℃ ~ +105℃

ESD&EFT

⚫ ESD 6KV

⚫ EFT 4KV

Package

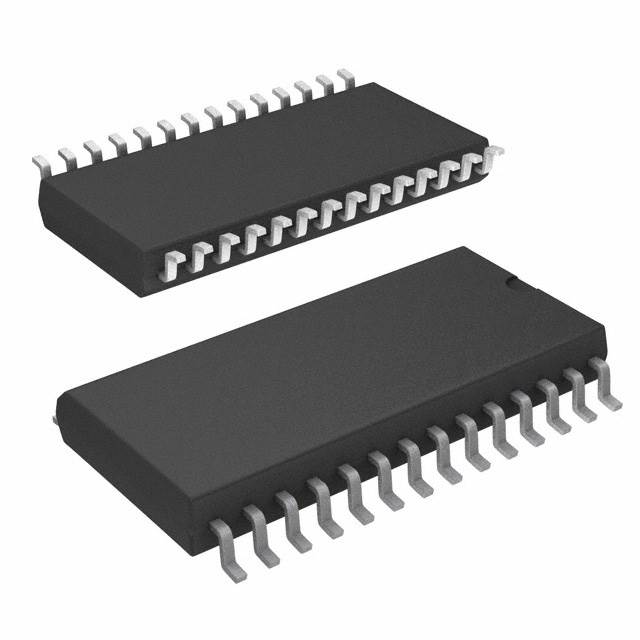

⚫ 28 PIN: SOP28 / TSSOP28

⚫ 32 PIN: LQFP32 (7X7) / QFN32 (5X5)

⚫ 44 PIN: LQFP44 (10X10)

⚫ 48 PIN: LQFP48 (7X7) / QFN48 (7X7)

CPU

⚫ Super-high-speed 1T 8051 core

⚫ The instruction set compatible with 8051

⚫ The execution speed is about twice that of other 1T 8051

⚫ Double data pointers (DPTRs)

Memories

⚫ 64 Kbytes Flash ROM

◼ Divided into 128 sectors

◼ 512 bytes per sector

◼ Can be rewritten 100,000 times

◼ The data written-in has more than 100-year preservation life in the ambient temperature of 25℃
