Product Introduction

The PFC154 is an IO-Type, fully static, MTP-based controller; it employs RISC architecture and most the instructions are executed in one cycle except that few instructions are two cycles that handle indirect memory access.

PFC154 has built-in 2KW MTP program memory and 128 byte data storage.

PFC154 provides a hardware 16-bit timer, two hardware 8-bit timers with PWM generation (Timer2, Timer3) and Three hardware 11-bit timers with PWM generation (PWMG0, PWMG1, PWMG2).

PFC154 also supports one hardware comparator and VDD/2 bias voltage generator for LCD display application.

   Product Features

1.1. Special Features

 High EFT series

 Operating temperature range: -40°C ~ 85°C

 ESD > 8 KV

1.2. System Features

 2KW MTP program memory (programming cycle at least 1,000 times)

 128 Bytes data RAM

 Clock sources: IHRC, ILRC & EOSC(XTAL mode)

 14 IO pins with optional pull-high resistor

 Every IO pin can be configured to enable wake-up function

 Two external interrupt pins

 8 selectable levels of LVR reset from 1.8V to 4.5V

 One hardware 16-bit timer

 Two hardware 8-bit timer with PWM generators

 Three hardware 11-bit PWM generators

 Provide one hardware comparator

 Built-in VDD/2 bias voltage generator to provide maximum 4 x 10 dots LCD display

1.3. CPU Features

 One processing unit operating mode

 86 powerful instructions

 Most instructions are 1T execution cycle

 Programmable stack pointer and adjustable stack level

 Direct and indirect addressing modes for data access. Data memories are available for use as an index pointer of Indirect addressing mode

 Register space, memory space and MTP space are independent

    Specifications

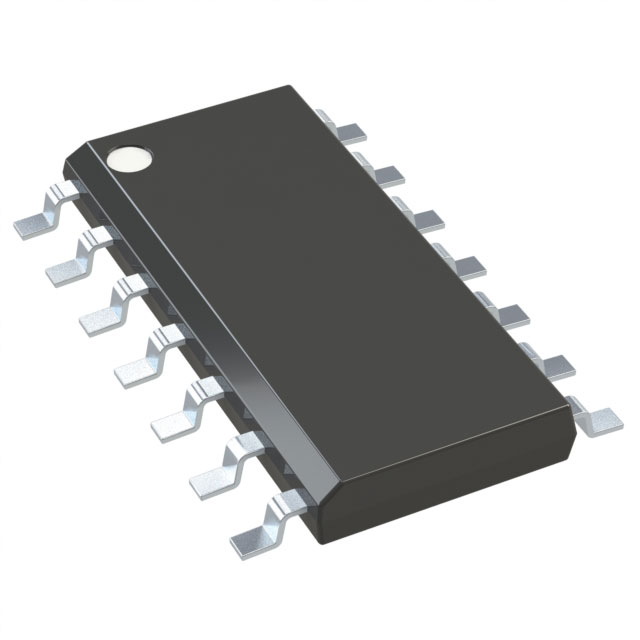

    Actual product photos
