Product Features

1.1. Special Features

 High EFT series

Especially fit for the products that are AC powered with even using RC step-down circuit, or require strong noise immunity, or required high EFT capability (±4KV) for passing safety regulation tests.

 Operating temperature range: -40°C ~ 85°C

 ESD > 8 KV

1.2. System Features

 2KW MTP program memory (programming cycle at least 1,000 times)

 128 Bytes data RAM

 Maximum 7 IO pins can be selected as TOUCH PAD individually

 8 IO pins with optional pull-high / pull-low resistor

 Every IO pin can be configured to enable wake-up function

 One hardware 16-bit timer

 Two hardware 8-bit timer with PWM generators

 One hardware comparator

 Bandgap circuit to provide 1.20V Bandgap voltage

 Clock sources: IHRC, ILRC & EOSC(XTAL mode)

 LVR (Low Voltage Reset) is selectable from 1.8V ~ 4.5V, total 8 levels

 LVD (Low Voltage Detect) is selectable from 1.8V ~ 4.5V, total 16 levels

 Three selectable external interrupt pins

1.3. CPU Features

 One processing unit operating mode

 86 powerful instructions

 Most instructions are 1T execution cycle

 Programmable stack pointer and adjustable stack level

 Direct and indirect addressing modes for data access

 All data memories are available for use as an index pointer

 Register space, memory space and MTP space are independent

    Specifications

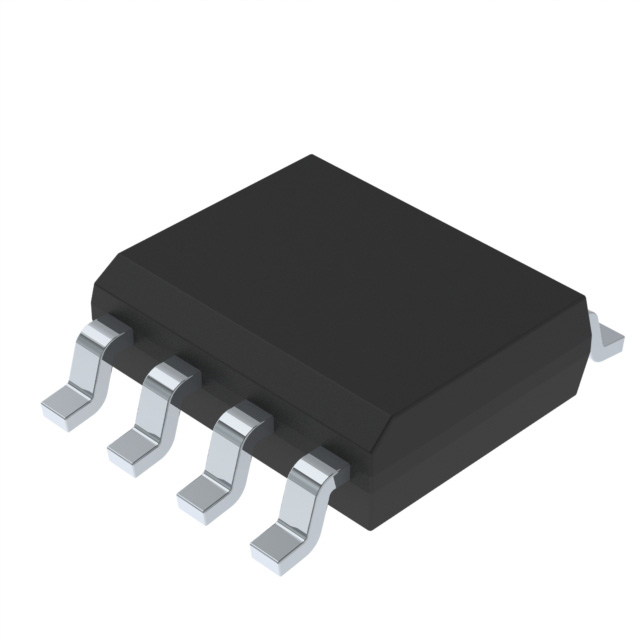

    Actual product photos
