Product Features

1.1. Special Features

 Not supposed to use in AC RC step-down powered or high EFT requirement applications.

PADAUK assumes no liability if such kind of applications can not pass the safety regulation tests.

 Operating temperature range: -20°C ~ 70°C

1.2. System Features

 2KW OTP program memory

 128 Bytes data RAM

 One hardware 16-bit timer

 Two hardware 8-bit timer with PWM generators

 Three hardware 11-bit PWM generators

 Provide one hardware comparator

 14 IO pins with optional pull-high resistor

 Three different IO driving capability groups to meet different application requirement

 Optional IO driving capability for each port：normal drive and low drive

 Every IO pin can be configured to enable wake-up function

 Built-in VDD/2 bias voltage generator to provide maximum 4x10 dots LCD display

 Clock sources: IHRC, ILRC & EOSC(XTAL mode)

 For every wake-up enabled IO, two optional wake-up speed are supported: normal and fast

 Eight levels of LVR: 4.0V, 3.5V, 3.0V, 2.75V, 2.5V, 2.2V, 2.0V, 1.8V

 Two external interrupt pins

1.3. CPU Features

 One processing unit operating mode

 86 powerful instructions

 Most instructions are 1T execution cycle

 Programmable stack pointer and adjustable stack level

 Direct and indirect addressing modes for data access. Data memories are available for use as an index pointer of

Indirect addressing mode

 IO space and memory space are independent

    Specifications

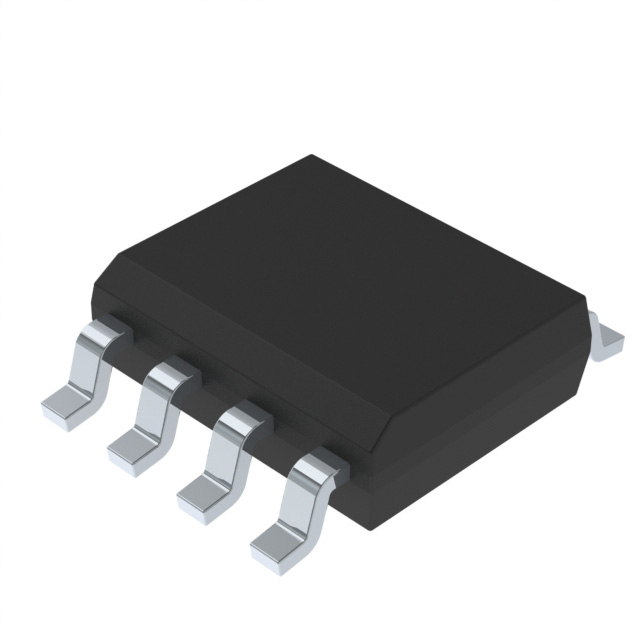

    Actual product photos
