Product Introduction

The SC92F74AX integrates 16 Kbytes Flash ROM, 1 KBytes SRAM, 128 bytes EEPROM, up to 26 GP I/Os, 13 IOs with external interrupts, 3 16 bit timers, 11 channels of 12 bit high-precision ADC, 6 independent 10 bit PWM, internal 1 PERCNET high-precision high-frequency 16/8/4/1.33MHz oscillator and 4 PERCENT precision low-frequency 128K oscillator, external crystal oscillator, one UART, one UART/SPI/IC three choice one communication port SSI. To improve reliability and simplify customer circuits, the SC92F74AX also integrates four levels of optional voltage LVR, 2.4V reference ADC reference voltage, and other high reliability circuits internally. SC92F74AX has excellent anti-interference performance and is very suitable for use in various applications such as main control of smart home appliances and smart homes, Internet of Things, wireless communication, game consoles and other industrial control and consumer application fields.

Products Features

Working voltage: 2.4V~5.5V

Working temperature: -40~85 ℃

Encapsulation:

SC92F74A3 (SOP28/TSSOP28)

SC92F74A2 (SOP20/TSSOP20)

SC92F74A1 (SOP16)

Kernel: 1T 8051

Flash ROM: 16 Kbytes Flash ROM (MOVC disable addressing 0000H~00FFH) can be repeatedly written 10000 times

IAP: can be coded with options of 0K, 0.5K, 1K, or 16K

EEPROM：128 bytes， No need to erase, 100000 writes, with a storage life of over 10 years

SRAM: Internal 256 bytes+External 768 bytes

System clock (fSYS):

⚫  Built in high-frequency 16MHz oscillator (fHRC)

◼  When used as a system clock source, fSYS can be set to 16/8/4/1.33MHz through a programmer selection

◼  Frequency error: Across (2.9V~5.5V) and (-10~85 ℃) application environments, not exceeding ± 1 PERCENT

⚫  Built in high-frequency crystal oscillator circuit

◼  Can be connected to an external 2~16MHz oscillator

◼  When used as a system clock source, fSYS can be programmed to choose one of the four frequency divisions: external crystal oscillator/1/2/4/12

⚫  The operating voltage range corresponding to the IC system clock (fSYS)

◼ > 12MHz @2.9~5.5V

◼ ≤ 12MHz @2.4~5.5V

Built in low-frequency 128kHz LRC oscillator:

⚫  Can serve as a clock source for Base Timer and wake up STOP

⚫  Can be used as a clock source for WDT

⚫  Frequency error: Across (4.0V~5.5V) and (-20~85 ℃) application environments, the frequency error does not exceed ± 4 PERCENT

Low Voltage Reset (LVR):

⚫  There are 4 levels of reset voltage to choose from: 4.3V, 3.7V, 2.9V, 2.3V

⚫  The default value is the value selected by the user for burning the Code Option

Flash burning and simulation:

⚫  2-wire JTAG programming and simulation interface

Specifications

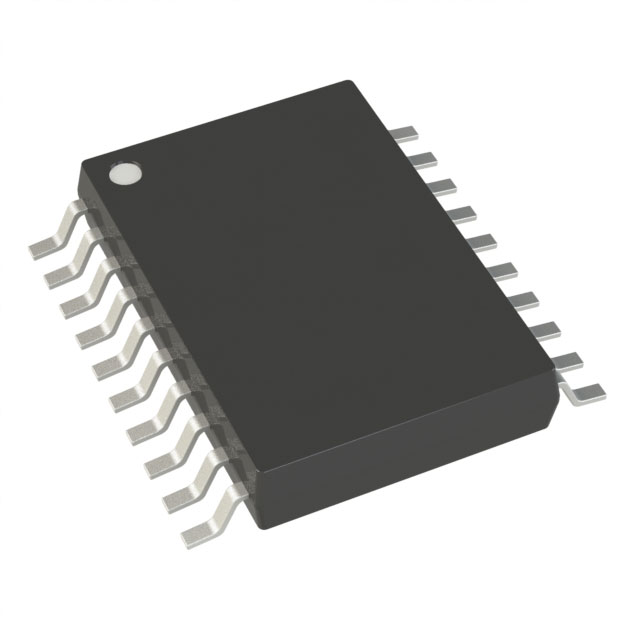

Actual product photos
