Product Features

⚫  PIC16 like instruction set

⚫  8-layer hardware stack x 11 bits

⚫  2T or 4T instruction cycle

⚫  2Kx14b program storage space (16 bytes/page)

⚫  256x8b data EEPROM (16 bytes/page)

⚫  Data EEPROM in Application Programming

⚫  128x8b SRAM

⚫  1 x Timer with 8-bit prescaler 0

⚫  1 x Timer with 8-bit prescaler 2

⚫  WDT with 7-bit prescaler, overflow frequency is approximately 16-2048ms

⚫  Power on delay counter PWRT

⚫  Low power mode SLEEP

⚫  Multiple wake-up sources, INT、 Port change interrupt WDT、 Data EEPROM write completed, etc

⚫  Built in high-speed 16M RC oscillator

⚫  Built in low-speed 32K RC oscillator

⚫  Supports external crystal oscillator 16M or 32K, as well as external clock mode

Clock missing detection

Dual speed startup mode (in crystal or external clock mode)

⚫  Built in 2 high-speed and high-precision comparators

Programmable on-chip reference voltage

The comparison results can be directly output

⚫  Up to 16 universal IO, 18 chip pins

⚫  7 IO with independent pull-up control

⚫  Port change interrupt, RA0-RA7

⚫  Support ICSP in system programming

⚫  Support online debugging

⚫  Program Space Protection

⚫  Working voltage range: 2.0V-5.5V

⚫  Maximum clock operating frequency: 16MHz

 FSYS=8MHz: 2.0V-5.5V

 FSYS=16MHz: 2.7V-5.5V

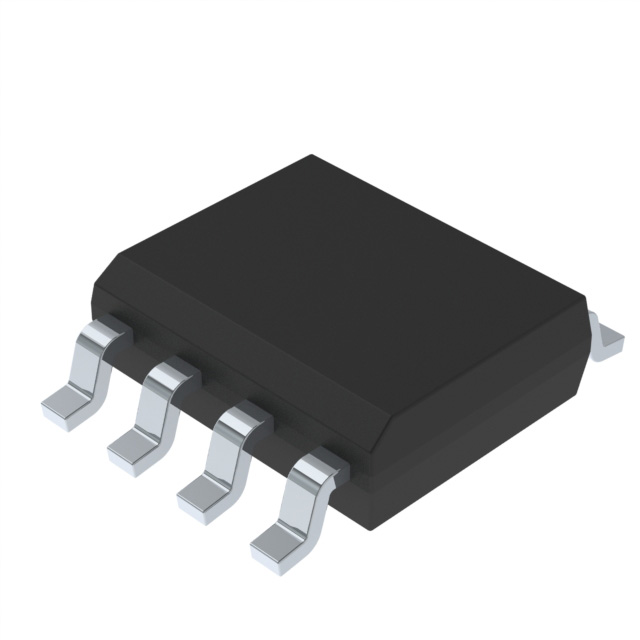

Encapsulation types: SOP8, DIP8, SSOP10, SOP14, DIP14, SOP16, DIP16, SOP18, DIP18, TSSOP20
