Product Introduction

IP2188 is a fast charging Physical Layer IC dedicated for USB ports, which supports 12 kinds of fast charging standards, including USB PD2.0/PD3.0 /PPS (Programmable Power Supply), HVDCP QC2.0/QC3.0 (Quick Charge), AFC (Samsung® Adaptive Fast Charge)，SCP (Hisilicon® Super Charge Protocol ) and FCP (Hisilicon® Fast Charge Protocol), MTK PE+2.0/PE+1.1(MediaTek Pump Express Plus 2.0/1.1), Apple 2.4A, BC1.2 and Samsung 2.0A.

IP2188 support automatically detecting the connected device’s type and switching standards type to responding for fast charging requirements.

FB control line support sink or source current (2uA/step) for accurate voltage regulation.

Products Features

 Support 12 charging standards including :

 USB PD2.0/PD3.0/PPS DFP

 QC3.0/QC2.0, AFC, SCP, FCP, MTK PE2.0/1.1

 Apple 2.4A, Samsung 2.0A and BC1.2

 Support USB PD2.0/PD3.0/PPS

 Auto detect USB PD device plug in or out

 18w SRC_CAP package broadcast

 5V/9V/12V SRC_CAP package broadcast

 3V~12V PPS SRC_CAP package broadcast

 VBUSG open power rail after CC connection

 Support Qualcomm® QC3.0/QC2.0 Class A

 QC3.0 Class A: 3.6V~12V(0.2V/step)

 QC2.0 Class A: 5V, 9V, 12V

 MTK PE2.0/1.1

 PE+ 2.0: 5V~20V(0.5V/step)

 PE+ 1.1: 5V/7V/9V/12V

 Support Samsung® AFC

 Support Huawei® SCP

 Support Huawei® FCP

 Support Apple 2.4A: DP=2.7V, DM=2.7V

 Support Samsung 2.0A: DP=1.2V, DM=1.2V

 Support BC1.2: DP short DM automatically

 Default 5 V mode operation

 Support auto-detect and auto-switching fast charging standards

 FB for voltage regulation

 Support DP,DM,CC1,CC2 overvoltage protection

 Support DP,DM weak short to GND protection

 VIN working voltage: 3.3V~20V

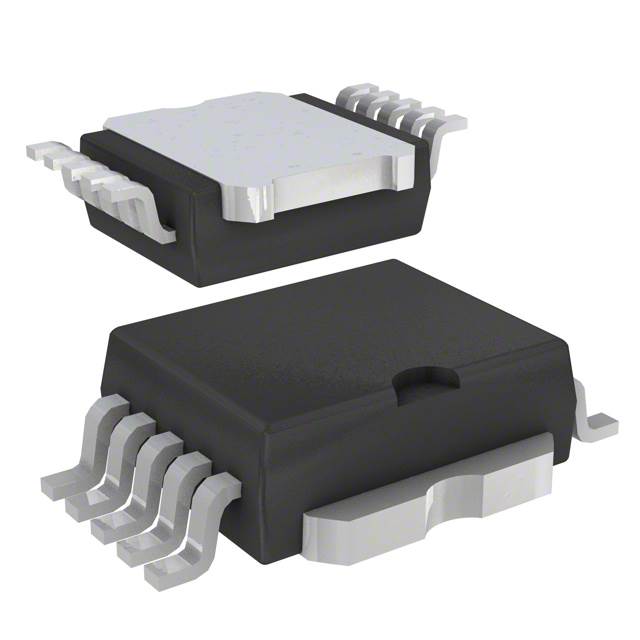

 Package: SSOP10

Products Applications

 USB power output ports for AC adapters, Power Banka, Car chargers

 Battery chargers for smart phones, tablets,netbooks, digital cameras, and Bluetooth accessories
