Product Descriptions

IP5389 is a power management SOC that integrates QC2.0 / QC3.0 / QC3+ output fast charging protocol, AFC/FCP/SCP/ VOOC input and output fast charging protocol, USB C PD2.0/PD3.0 input and output fast charging protocol and PPS output protocol, BC1.2/iPhone protocol, synchronous bi-directional buck-boost converter, lithium battery charging management and battery power indicator, providing a complete power solution for fast charging mobile power supplies. It can support four USB ports such as two USB A ports, one USB C port and one USB B port (lightning port or USB C port)at the same time and fast charging when any USB port is connected alone. When two or more output ports are used at the same time, every port’s output voltage is 5V.

Due to the high integration of IP5389, only one inductor is needed to realize the bidirectional buck-boost function. Only a few peripheral components are needed in the application, which effectively reduces the size of the overall solution and reduces the BOM cost.

IP5389 supports 2/3/4/5 series batteries and the synchronous switch buck-boost system can provide a maximum output capacity of 100W. When there is no load, it automatically enters the dormant state.

Product Features

 Supporting Multiple USB Ports Simultaneously

 2 USB A output ports

 1 USB C input/output port

 1 USB B input port or Lightning input port or C input/output port

 Fast Charging

 Every port supports fast charging

 Support QC2.0/QC3.0/QC3+ output

 Support FCP input/output

 Support AFC input/output

 Support SCP input/output

 Support VOOC input/output

 Support DRP try.SRC, PD3.0 input/output

 Support BC1.2,Apple

 Integrated USB PD2.0/PD3.0 Protocol

 Support PD2.0 input/output protocol

 Support PD3.0 input/output and PPS output protocol

 Support 5V/9V/12V/15V/20V input

 Support 5V/9V/12V/15V/20V output

 Support adjustable voltage in 20mV increments in PPS Mode

 Integrate hardware Bi-phase mark codec(BMC) protocol

 Integrate Physical Layer protocol

 Integrate hardware CRC

Product Applications

 Power bank, power storage device

 Portable devices such as mobile phones and tablets

Specifications

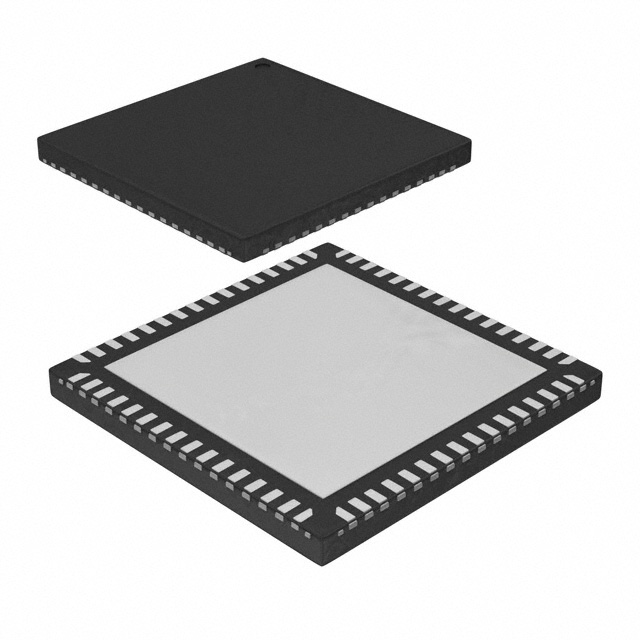

Actual product photos
