Product Descriptions

BF7612CMXX adopts a high-speed 8051 core with 1T instruction cycle, which is faster than the standard 8051 (12T) instruction cycle and compatible with standard 8051 instructions.

BF7612CMXX includes peripherals such as watchdog, button detection, LED serial dot matrix driver IIC、UART、 Low voltage detection, power down reset, 3-channel 16 bit PWM, Timer0, Timer1, Timer2, 12 bit 10 bit precision successive approximation ADC, low-power mode, etc.

The BF7612CMXX integrated capacitor detection channel can be used to detect close range sensing or touch. It has a built-in MCU that can be flexibly configured; Multiple applications such as buttons, scroll wheels, and sliders can be implemented through configuration. The buttons can operate independently, and each button can adjust sensitivity through the corresponding function register.

Product Features

● Working voltage: 2.5-5.5V

● Working temperature: -40 ℃~+105 ℃

● Storage temperature: -40 ℃~+125 ℃

● Storage:

15K FLASH+1K EEPROM

16K FLASH+2 * 512Byte class EEPROM

● 256Bytes(data)+512(xdata)SRAM

● Built in RC oscillation circuit (1MHz)

● High speed 8051, based on the standard 8051 instruction pipeline structure

● Operating frequency (software configuration): 12M, 6M, 4M system clock,

● One clock/machine cycle, 9-12 times faster than a regular 8051

● Capacitive buttons can be reused as GPIO

● GPIO supports built-in pull-up resistors

● 16 bit PWM output module, PWM0 supports IO mapping output

● 8 * 8, 7 * 8, 7 * 7, 6 * 7, 6 * 6, 5 * 5, 4 * 4 LED serial dot matrix driver

● Large current port (PB0~PB7)

● Three 16 bit timers with overflow interrupts; Timer2 clock source can be an internal 32KHz or external 32768Hz/4MHz crystal oscillator

Specifications

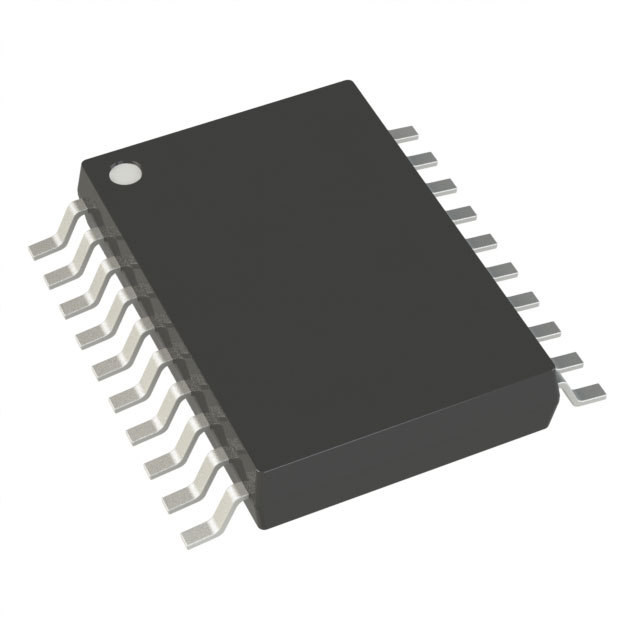

Actual product photos
