Product Descriptions

The DM132 is a LED driver incorporating shift registers, data latches, 16-channel constant current circuitry with current value set by an external resistor, 1024 gray level PWM (Pulse Width Modulation) functional unit and time division capability. Each channel can provide a maximum current of 60 mA. Time division operation allows driving up to 1 or 2 LEDs with a single output channel (mode-1 and mode-2 respectively).

Product Features

Constant current outputs with current value settings by an external resistor

Maximum output current: 60 mA

Time division output allows the driving of 1 or 2 LEDs with a single output

Maximum / minimum output voltage: 20V / 1.1V

10 bits luminance data with PWM current outputs

Serial shift-in architecture for luminance data in time division Mode 1 and Mode 2

Specifications

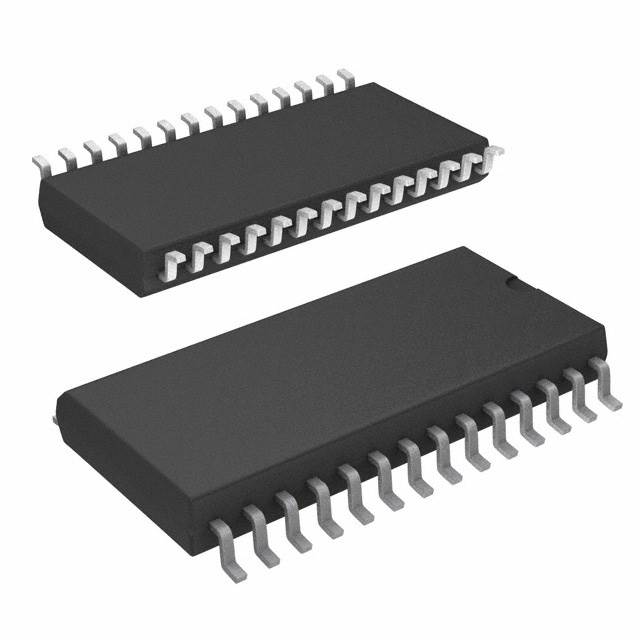

Actual product photos
