Product Descriptions

DM13C is  a  constant-current sink driver  specifically  designed  for  LED  display  applications. The  device  incorporates  shift  registers,  data  latches,  and  constant  current  circuitry  on  the  silicon CMOS chip. The maximum output current value of all16 channels is adjustable by a single external resistor. Its built-in open/short detection circuits help users detect LED failures.System retrieve the error  messages  to  indicate  which  channel  has  failure  by  serial  output  data.  The  thermal  shutdown function provides the over temperature protection.

Product Features

Constant-current outputs: 5mA to 90mA adjustable by one external resistor

Maximum output voltage: 17V

Maximum clock frequency: 25MHz

Built-in real-time LED open/short detection

Fast detecting response: 0.1us (min.)

Over temperature protection: thermal shutdown (junction temperature> 180°C)

Package and pin assignment compatible to conventional LED drivers (ST2221C, DM134/5/6)

Power supply voltage: 3.3V to 5.5V

Bit-to-bit skew :±3 PERCENT@ 25mA~90mA ;±6 PERCENT @ 5mA~25mA

Chip-to-chip skew: ±6 PERCENT @ 25mA~90mA;  ±10 PERCENT@ 5mA~25mA

Product Applications

Indoor/Outdoor LED VideoDisplay

LED Variable Message Signs(VMS) System

Specifications

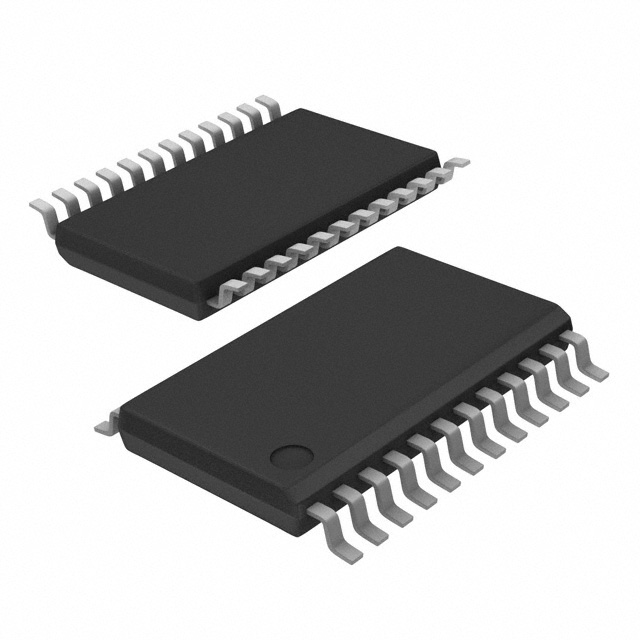

Actual product photos
