Product Descriptions

The XL6019 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6019 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6019 regulator is special design for portable electronic equipment applications.

Product Features

 Wide 5V to 40V Input Voltage Range

 Positive or Negative Output Voltage Programming with a Single Feedback Pin

 Current Mode Control Provides Excellent Transient Response

 1.25V reference adjustable version

 Fixed 180KHz Switching Frequency

 Maximum 5A Switching Current

 SW PIN Built in Over Voltage Protection

 Excellent line and load regulation

 EN PIN TTL shutdown capability

 Internal Optimize Power MOSFET

 High efficiency up to 94 PERCENT

 Built in Frequency Compensation

 Built in Soft-Start Function

 Built in Thermal Shutdown Function

 Built in Current Limit Function

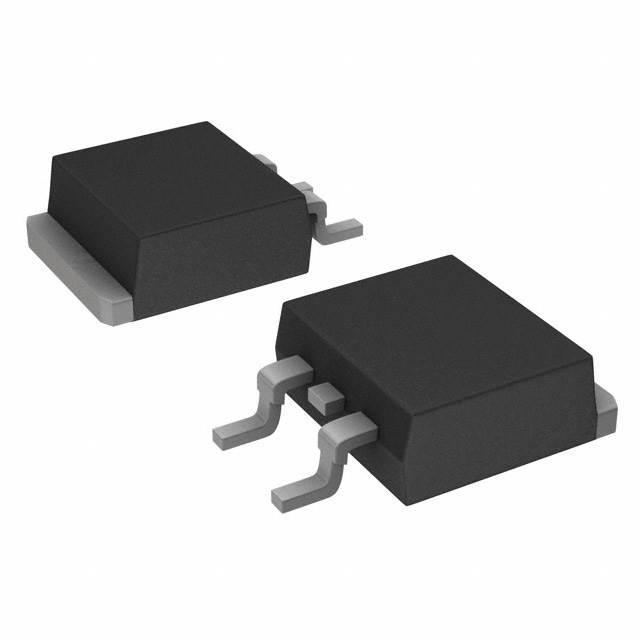

 Available in TO263-5L package

Product Applications

 EPC / Notebook Car Adapter

 Automotive and Industrial Boost / Buck-Boost / Inverting Converters

 Portable Electronic Equipment

Specifications
