Product Descriptions

The XL7026 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.6A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100 PERCENT.

Product Features

 Operating Voltage: 12V~90V

 Maximum Duty Cycle up to 100%

 Minimum Drop Out 0.5V

 Adjust VOUT from 1.25V to 20V

 Max. IOUT=0.6A at VOUT=5V

 Max. IOUT=0.3A at VOUT=12V or 15V

 Max. output power less than 5W

 Fixed 150KHz Switching Frequency

 Internal Optimize HV Power MOSFET

 High efficiency up to 85 PERCENT

 Excellent line and load regulation

 Built in output short Protection Function

 Built in current limit function

 SOP8-EP (Exposed PAD) package

Product Applications

 Ebike Controller Power Supply

 Telecom / Networking Equipment

Specifications

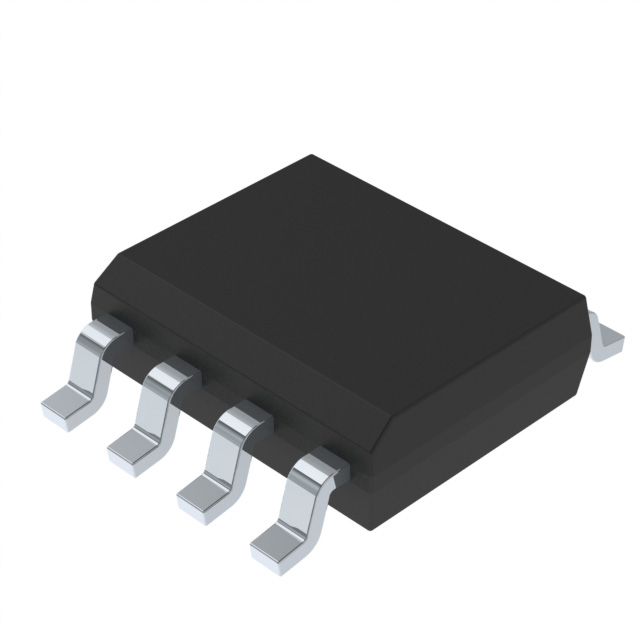

Actual product photos
