Product Descriptions

The  XL6008  regulator  is  a  wide  input  range,  current   mode,   DC/DC   converter   which   is   capable   of   generating   either   positive   or   negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter.  The  XL6008  built  in  N-channel  power     MOSFET     and     fixed     frequency     oscillator, current-mode architecture results in stable  operation  over  a  wide  range  of  supply  and output voltages.

The  XL6008  regulator  is  special  design  for  portable electronic equipment.

Product Features

„ Wide 3.6V to 32V Input Voltage Range

„ Positive   or   Negative   Output   Voltage Programming with a Single Feedback Pin

„ Current Mode Control Provides Excellent Transient Response

„ 1.25V reference adjustable version

„ Fixed 400KHz Switching Frequency

„ Maximum 3A Switching Current

„ SW PIN Built in Over Voltage Protection

„ Excellent line and load regulation

„ EN PIN TTL shutdown capability

„ Internal Optimize Power MOSFET

„ High efficiency up to 92 PERCENT

„ Built in Frequency Compensation

„ Built in Soft-Start Function

„ Built in Thermal Shutdown Function

„ Built in Current Limit Function

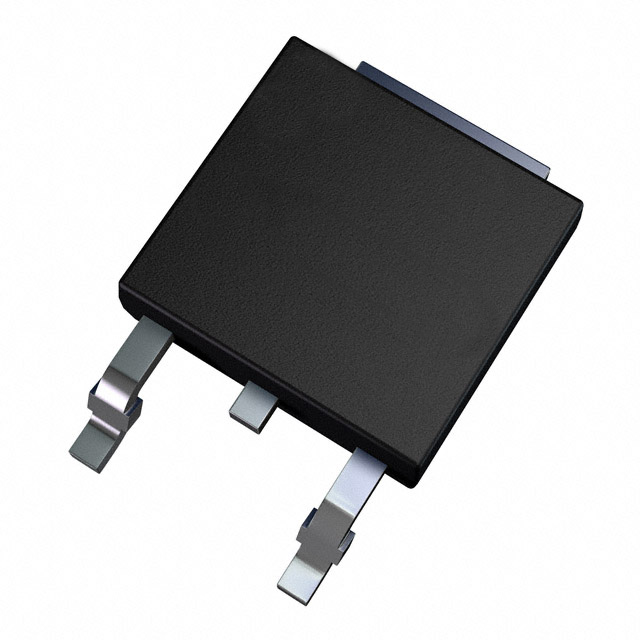

„ Available in TO252-5L package

Product Applications

„ Automotive    and    Industrial    Boost    / Buck-Boost / Inverting    Converters

„ Portable Electronic Equipment
