Product Descriptions

The XL6006 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W/3W/5W LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work. The XL6006 could directly drive 16 Series 1W/3W LED units at VIN=24V .

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 90 PERCENT. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

Product Features

„ Wide 5V to 32V Input Voltage Range

„ Maximum Boost Output Up to 60V

„ 0.22V FB adjustable LED drive current

„ Directly drive 16 Series 1W/3W LED at VIN=24V

„ Fixed 180KHz Switching Frequency

„ Max. 5A Switching Current Capability

„ Up to 94 PERCENT efficiency

„ Excellent line and load regulation

„ EN PIN TTL shutdown capability

„ Internal Optimize Power MOSFET

„ Built in Soft-Start Function

„ Built in Frequency Compensation

„ Built in Thermal Shutdown Function

„ Built in Current Limit Function

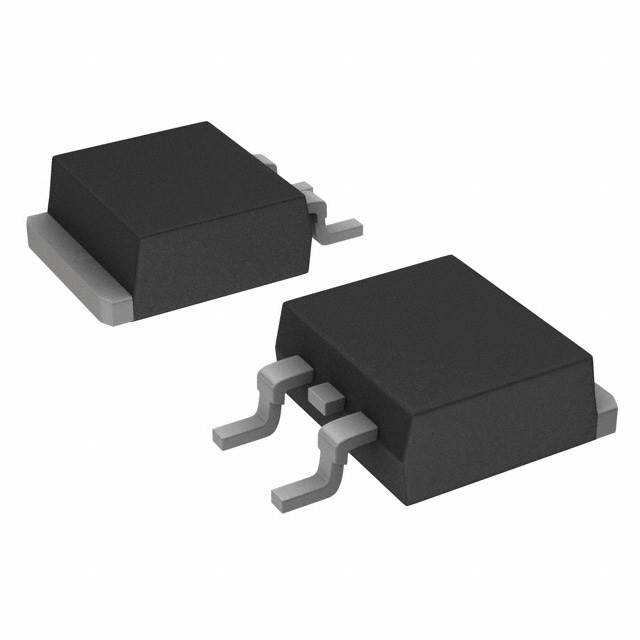

„ Available in TO263-5L package

Product Applications

„ LED Lighting

„ Boost constant current driver

„ TFT LED Backlighting
