Product Descriptions

The XL6007 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages. It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6007 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages.

The XL6007 regulator is special design for portable electronic equipment.

Product Features

n Wide 5V to 18V Input Voltage Range

n Positive or Negative Output Voltage

Programming with a Single Feedback Pin

n Current Mode Control Provides Excellent Transient Response

n 1.25V reference adjustable version

n Fixed 400KHz Switching Frequency

n Maximum 2A Switching Current

n SW PIN Built in Over Voltage Protection

n Excellent line and load regulation

n EN PIN TTL shutdown capability

n Internal Optimize Power MOSFET

n High efficiency up to 90 percent

n Built in Frequency Compensation

n Built in Soft-Start Function

n Built in Thermal Shutdown Function

n Built in Current Limit Function

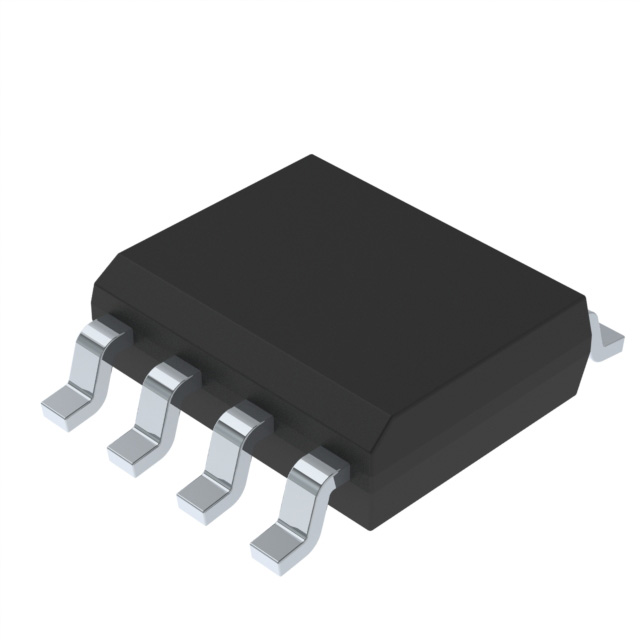

n Available in SOIC-8 package

Product Applications

n Automotive and Industrial Boost /Buck-Boost / Inverting Converters

n Portable Electronic Equipment
