Product Descriptions

The XL2576 is a 52 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100 PERCENT. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

Product Features

 Wide 4.5V to 40V Input Voltage Range

 5V,12V and adjustable versions

 Output Adjustable from 1.23V to 37V

 Maximum Duty Cycle 100 PERCENT

 Minimum Drop Out 1.5V

 Fixed 52KHz Switching Frequency

 3A Constant Output Current Capability

 Internal Optimize Power Transistor

 High efficiency

 Excellent line and load regulation

 TTL shutdown capability

 EN pin with hysteresis function

 Built in thermal shutdown function

 Built in current limit function

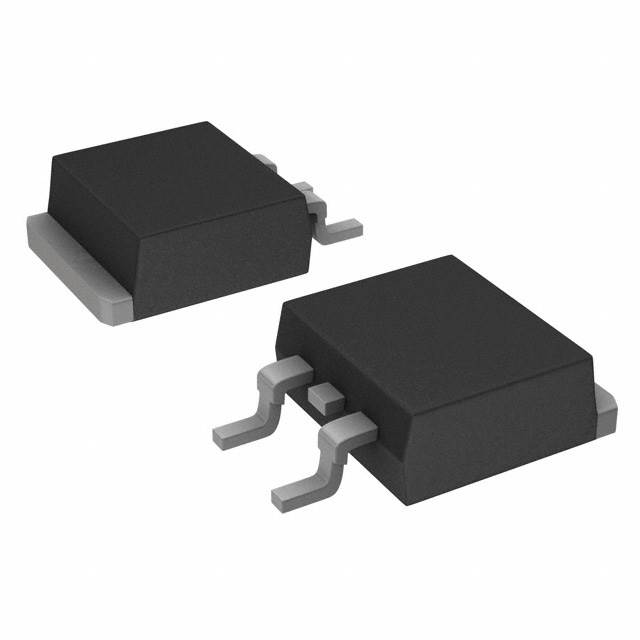

 Available in TO220-5L or TO263-5L packages

Product Applications

 LCD Monitor and LCD TV

 Digital Photo Frame

 Set-up Box

 ADSL Modem

 Telecom / Networking Equipment
