XL3003 TO252 Lighting Driver IC Booster, Step-down, Constant Current Driver Chip High Voltage, High Flow, and High Efficiency Chip

XL3003

Model:XL3003

Manufacturer:XLSEMI

Package:TO-252

Detail

Product Descriptions


The XL3003 is a 220 KHz fixed frequency PWM buck (step-down) LED constant current driver, capable of driving a 4A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.


The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An over current protection function is built inside. An internal compensation block is built in to minimize external component count.


Product Features


 Wide 8V to 36V Input Voltage Range

 Output Current Sense Voltage is 0.21V

 Maximum Duty Cycle 100 percent

 Minimum Drop Out 0.3V

 Fixed 220KHz Switching Frequency

 4A Constant Output Current Capability

 Internal Optimize Power MOSFET

 High efficiency

 Excellent line and load regulation

 Built in thermal shutdown function

 Built in current limit function

 Available in TO252-5Lpackage


Product Applications


 Buck constant current driver

 Monitor LED Backlighting

 General purpose LED lighting


Specifications


ANSM-Part#XL3003
Type:Lighting Driver IC
ManufactorXLSEMI
DCNEW
DescribeTO252
Supplier Device PackagingREEL


Actual product photos

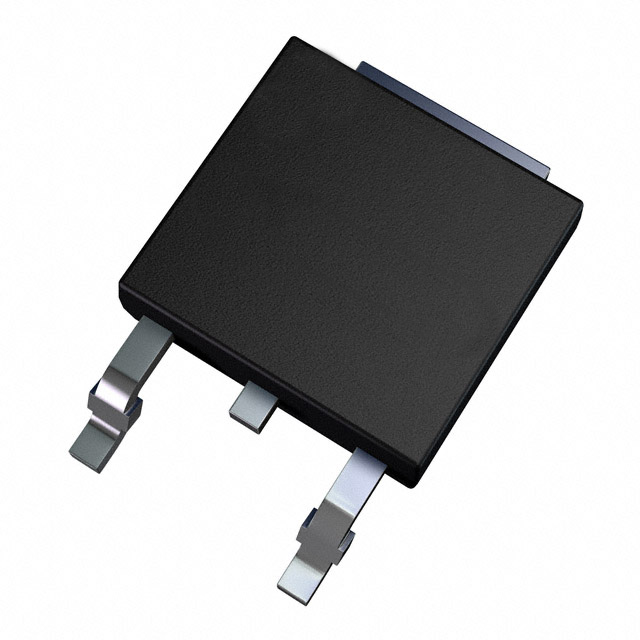

TO252
