Electronic components BOM Integrated circuit IC NJG1804K64-TE1

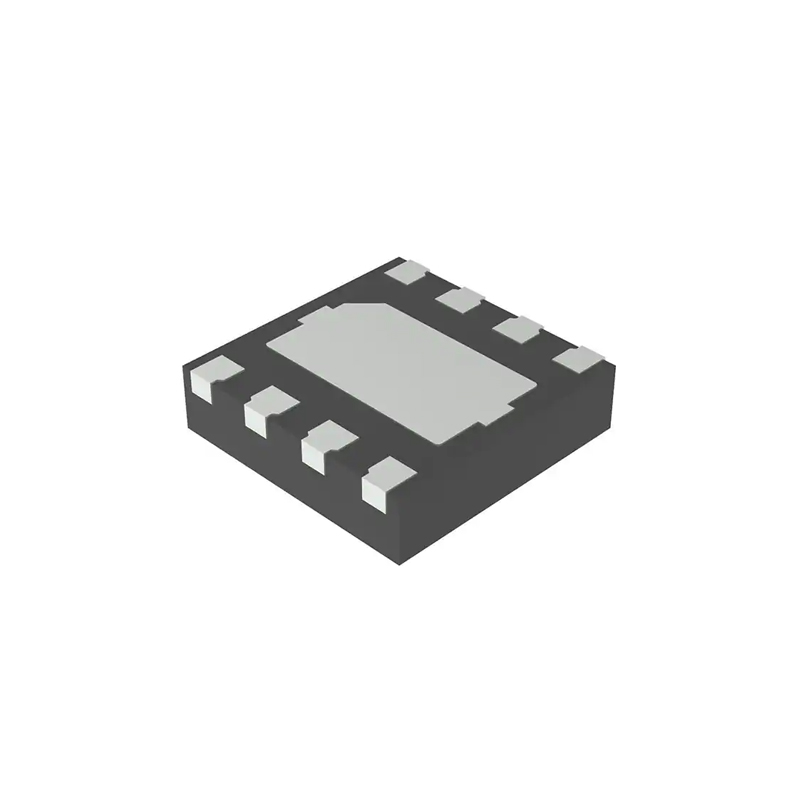

NJG1804K64-TE1

Model:NJG1804K64-TE1

Manufacturer:JRC

Package:DFN8-64

Detail

Product Descriptions


The NJG1804K64 is a GaAs SP3T switch MMIC which is suitable for WLAN(802.11a/b/g/n/ac) and Bluetooth applications. This MMIC switches between a common RF port and three RF ports by three control voltages. The NJG1804K64 features very low insertion loss, high isolation at wide frequency range up to 6.0GHz. The ultra small and ultra thin DFN8-64 package is adopted.


Product Features


 Low control voltage VCTL(H)=1.9V to 5.0V

 Low insertion Loss 0.50dB typ. @f=2.4 to 2.5GHz, 0.60dB typ. @f=4.9 to 5.9GHz

 High isolation 30dB typ. @f=2.4 to 2.5GHz, 26dB typ. @f=4.9 to 5.9GHz

 Ultra small & ultra thin package DFN8-64 (Package size: 1.5 x 1.5 x 0.375mm)

 RoHS compliant and Halogen free, MSL1


Product Applications


- 802.11a/b/g/n/ac WLAN applications

- Bluetooth

- General purpose switching applications


Specifications


ANSM-Part#NJG1804K64-TE1
categoryRF/IF, RF/IF and RFID
RF switch
manufacturerNisshinbo Micro Devices Inc.
series-
PackageTape and Reel (TR)
Shear Band (CT)
product statusin stock
RF type802.11a/b/g/n/ac,
topology-
circuitSP3T
Frequency Range6GHz
isolation26dB
insertion loss0.6dB
Test frequency5.9GHz
P1dB29dBm
IIP3-
characteristic-
impedance50 ohms
Voltage - Powered1.9V ~ 5V
Operating temperature-40°C ~ 105°C
Package/Enclosure8-XFDFN Exposed Pad
Supplier Device Packaging8-DFN(1.5x1.5)
Basic product numberNJG1804
