Product Description
| General Description These buffers/line drivers are designed to improve both the performance and PC board density of 3-STATE buffers/ drivers employed as memory-address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fanout outputs, and can be used to drive terminated lines down to 133Ω. Features ■ 3-STATE outputs drive bus lines directly ■ PNP inputs reduce DC loading on bus lines ■ Hysteresis at data inputs improves noise margins ■ Typical IOL (sink current) 64 mA ■ Typical IOH (source current) −15 mA ■ Typical propagation delay times Inverting 4.5 ns Noninverting 6 ns ■ Typical enable/disable times 9 ns ■ Typical power dissipation (enabled) Inverting 450 mW Noninverting 538 mW |

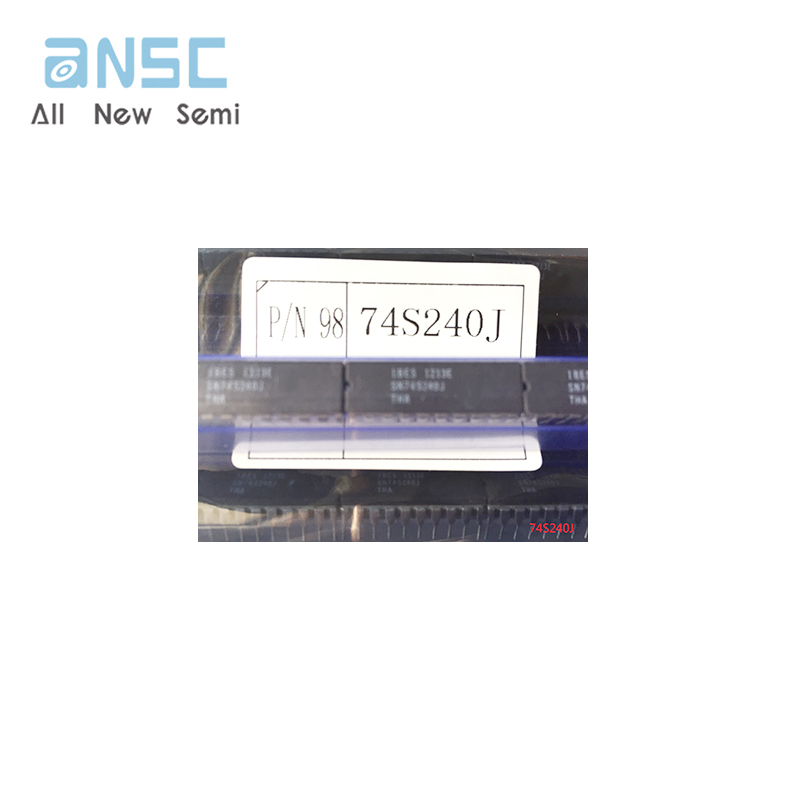

Product Photos
